Handheld Data Logger TC-37K

T-ZACCS3 Handheld Data Logger TC-37K

Faster and easier to use – a handheld data logger compatible with a wider range of sensors!

Compact, handheld design fits comfortably in one hand.
Building on the proven performance of the previous model TC-32K, this upgraded version offers even greater ease of use.
The new model expands compatibility with the addition of a sensor mode (1-gauge, 2-wire type), enabling a wider range of applications.
It also supports high-speed recording with monitoring intervals of 100 msec and logging intervals selectable at 0.5, 0.2, or 0.1 seconds, allowing for more detailed data acquisition.
In terms of operability, shortcut keys and a simplified menu structure ensure smoother, more intuitive operation.
Despite its smaller size, the mounting screw pitch remains unchanged, making it easy to replace existing units without modification.
This enhanced model is designed to satisfy both new users and current TC-32K owners alike.

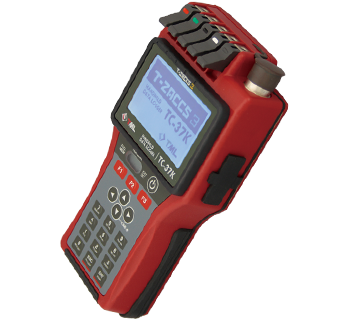

TC-37K
Features
  • Capable of measuring strain, DC voltage, thermocouples, platinum resistance temperature detectors (RTDs), resistance, and insulation resistance
  • Sensor inspection possible thanks to built-in insulation resistance measurement function
  • Supports 1G4W (1-gauge, 4-wire strain measurement) and 1-gauge, 2-wire method (recommended for Comet A)
  • TEDS compatible
  • Easy-to-use terminal section allows quick, one-touch connection of lead wires
  • Automatic measurement via interval timer; enables repetitive measurements at intervals of less than one second
  • Low power consumption design
  • Powered by four AA batteries, easily replaceable on-site
  • Can be combined with CSW-5B for multi-point measurement
  • Compatible with dual-axis inclinometer adapter
  • Drip-proof structure (IP54) for reliable field operation

  • Specifications
    Type TC-37K
    Measuring object Strain gauges and strain gauge transducers
    DC voltage, Thermocouple, Pt RTD, Resistance, Insulation resistance
    Number of channels  1 channel : TC-37K only
    2 channel : (with IA-33 or IA-32 adapter)
    5 channel : (with CSW-5B or CSW-5B-05)　
    Strain Measurement Range ±30,000 × 10⁻⁶ strain (με)
    ±300,000 × 10⁻⁶ strain (με) (Range ×10)
    *Gauge factor fixed at 2.00
    Measuring speed Normal mode: 500 ms/point (monitoring), 500 ms/point (scanning)
    High-speed mode: 100 ms/point (monitoring), 100 ms/point (scanning)
    Dimension 102 (W) × 49 (H) × 202 (D) mm (excluding protrusions)
    Weight Approx. 750 g
    Power supply

    4 AA alkaline batteries
    Dedicated AC adapter (CR-1869, [For China] (CR-1869-C)) or external DC input 9–18 V; USB bus-powered option available

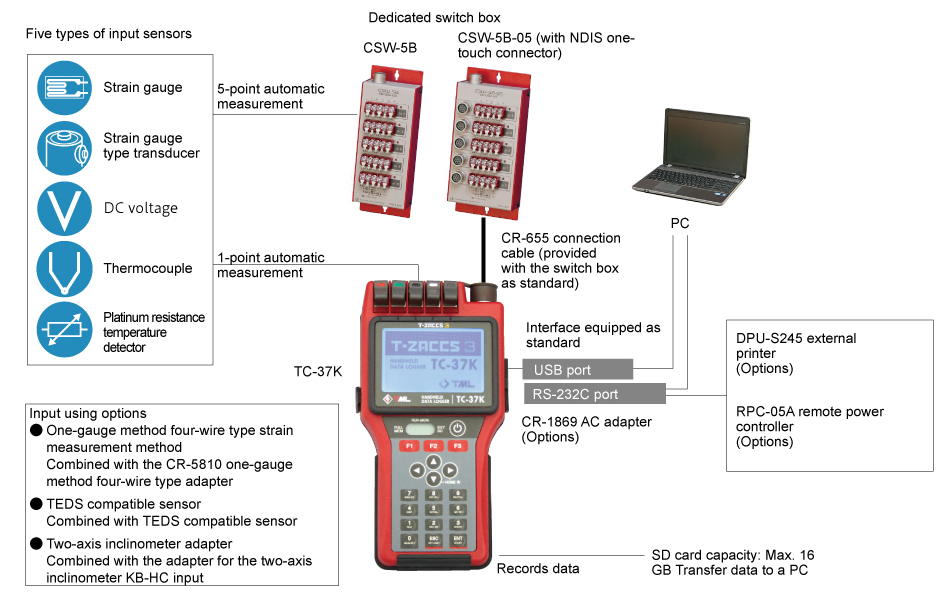

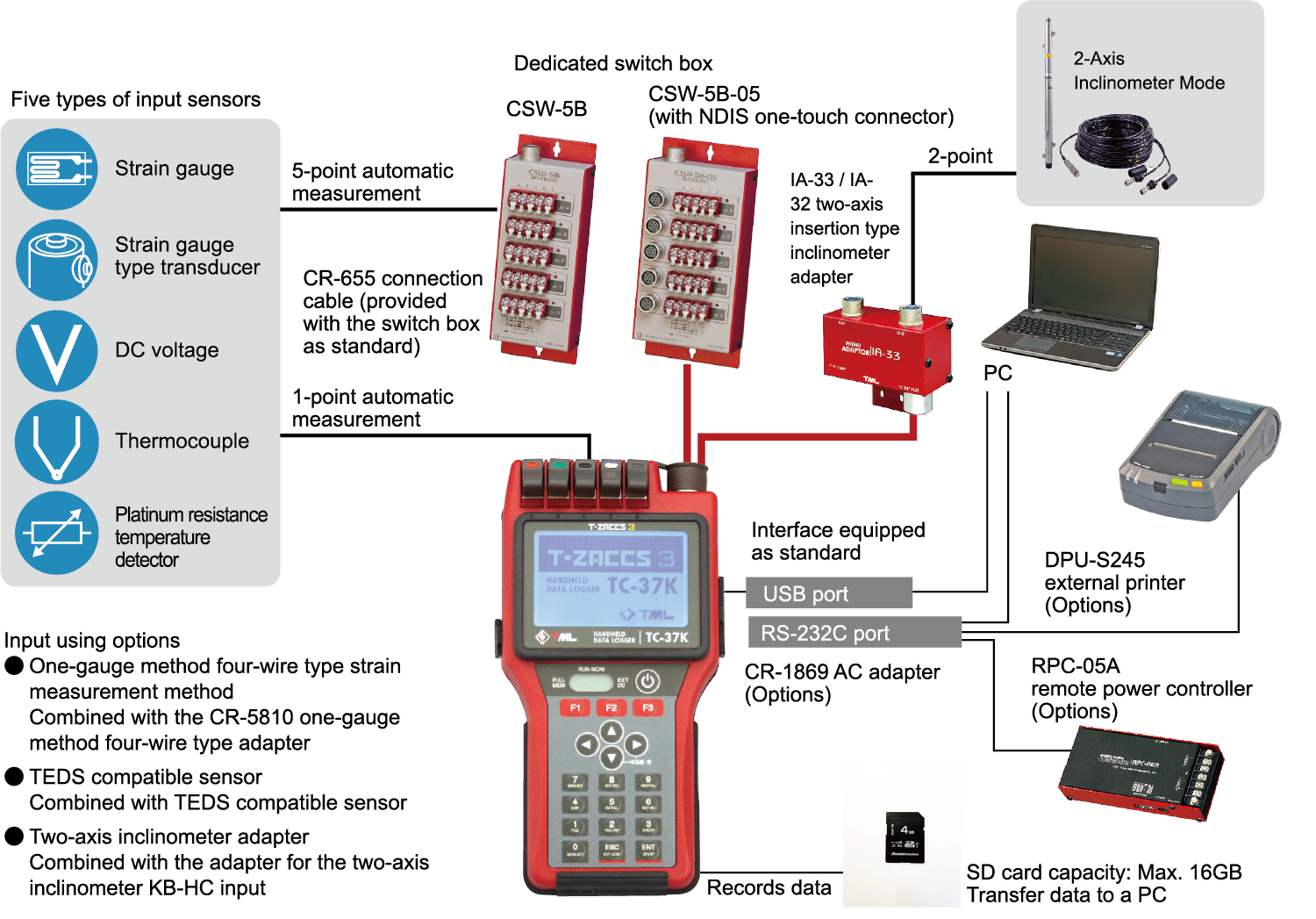

System Block Diagram

systemblock_TC-37K
