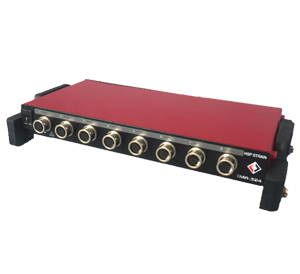

High-Speed Strain Full Bridge Unit TMR-324
Achieves a response frequency 10 times faster than the TMR-321!
The unit samples signals from sensors at a maximum rate of 1 MHz and records the data. Applicable sensors include strain sensors using the 4-gauge method and strain gauge-type transducers. Additionally, voltage measurements are possible by using attenuator cables.
Specifications
- Number of measurement points: 8
- Capable of measuring strain (4-gauge method) and voltage
- Built-in memory of 16M words enables 2 seconds of data recording at maximum sampling rate when using 8 channels
- Achieves high-speed mode with a maximum sampling rate of 1 MHz and a response frequency upper limit of 100 kHz
