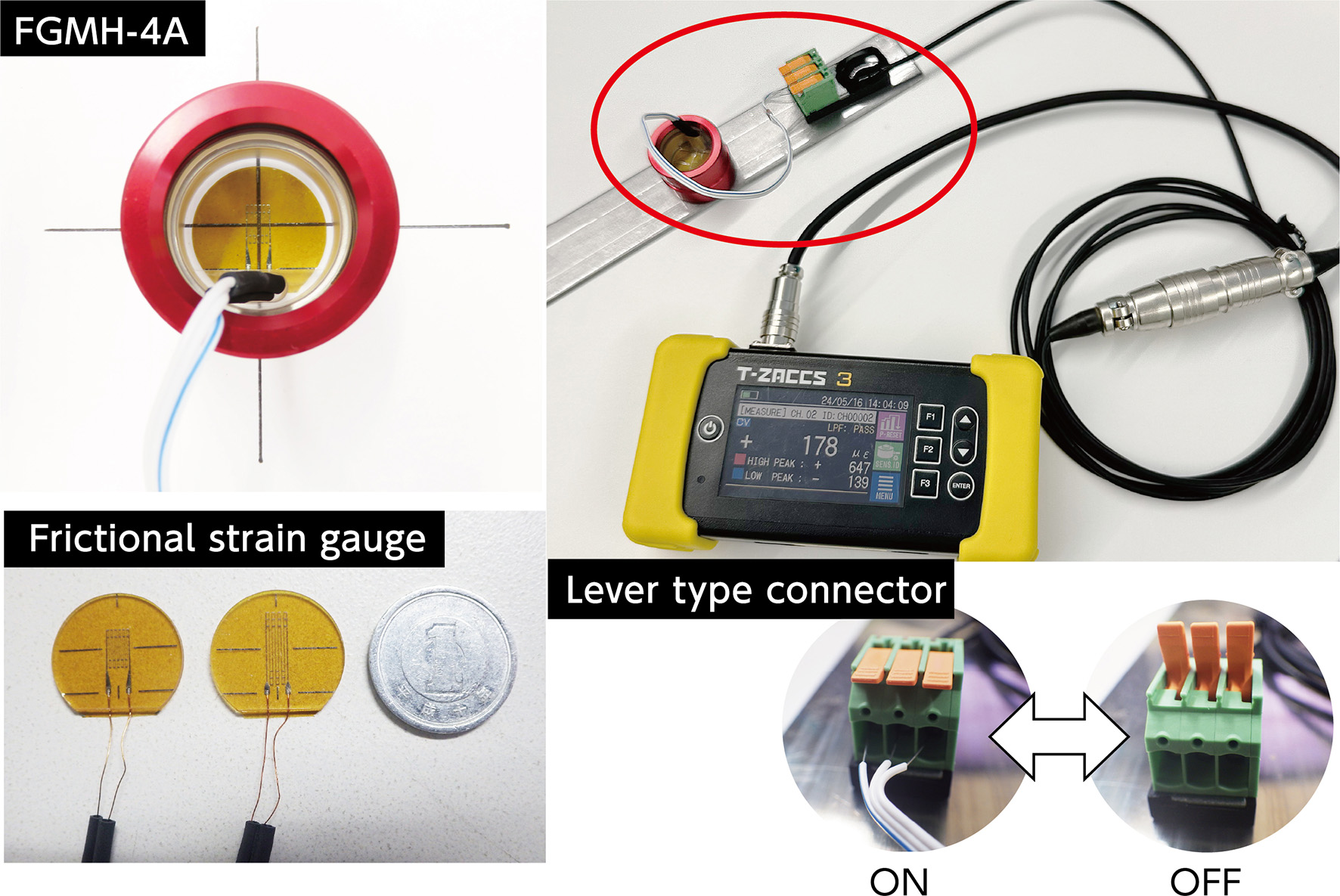

New Strain Checker that is smaller and lighter, evolved from the Strain Checker FGMH-1B!

Features

• Constant pressurization force due to magnetic method
• Transparent pressure part of the holder makes it easy to visually check the installation status
• As with the pressing jig “PRESSEE”, the spring mechanism inside the holder allows easy attachment and removal with light force
• Two types of frictional strain gauges can be used in one holder
• Two types of frictional strain gauges with gauge resistance of 120 Ω and gauge lengths of 3 mm or 6 mm
• Frictional strain gauges are not affected by lead wire temperature because of the quarter bridge with 3-wire method
• Frictional strain gauge and Cable with bridge circuit board can be connected with one-touch connection using a lever-type connector
• Compared to the strain checker FGMH-1B, the overall holder length has been reduced by approximately 55% (from 65 mm to 29 mm)
• Compared to the strain checker FGMH-1B, the holder weighs about 50% less (from approx. 60 g to approx. 30 g)
• CE compliant
