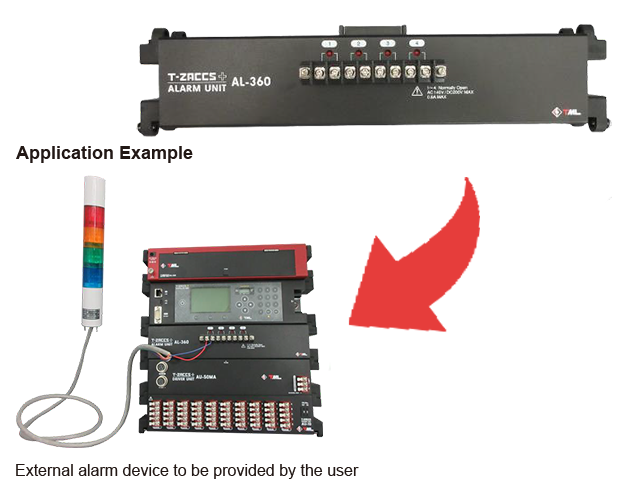

T-ZACCS3 Portable Data Logger TS-360 is now available with the much-requested “Alarm Unit”!

The AL-360 is a dedicated alarm unit to be connected to the TS-360.

The alarm output function monitors a specified channel and closes the specified contact when the measured value changes by a certain amount (relative value setting) or exceeds a threshold value (upper and lower limit setting).

Monitoring compares and switches contacts when monitoring or scanning is performed. There are four output contacts, and the comparison channel, comparison conditions, and output destination contact can be set.

It is also possible to set a single contact for multiple channels and close the contact if any of them exceeds the set range.
