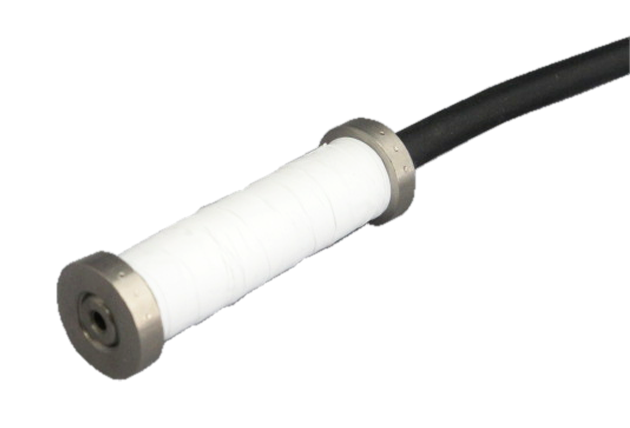

KM-50M Strain Transducer
KM-50M Now Available – A New Capacity Variant in the Slimmer KM-M Series
Our Strain Transducer are designed to measure not only the behavior of materials like concrete, mortar, and synthetic resins after hardening, but also the strain that occurs during the curing process.
In response to growing demand for strain measurement inside concrete with thinner cover thickness, we have developed the KM-50M — a new, smaller-diameter, low-elasticity strain transducer.
This model offers improved performance over our existing KM-50F, making it ideal for applications requiring compact and sensitive measurement solutions.
Features
- Compact Flange Design: Flange diameter φ16 mm, body diameter φ12 mm (KM-50F: flange φ20 mm, body φ17 mm)
- Gauge Length: 50 mm
- Strain Capacity: 5000 × 10⁻⁶ strain, non-linearity within 2% RO
- Rated Output: 6000 × 10⁻⁶ strain
- Operating Temperature Range: -20°C to +80°C
- Apparent Elastic Modulus: Approx. 25 N/mm² (KM-50F: approx. 40 N/mm²)
- Excellent Long-Term Stability
- Protection Rating: Equivalent to IP68
