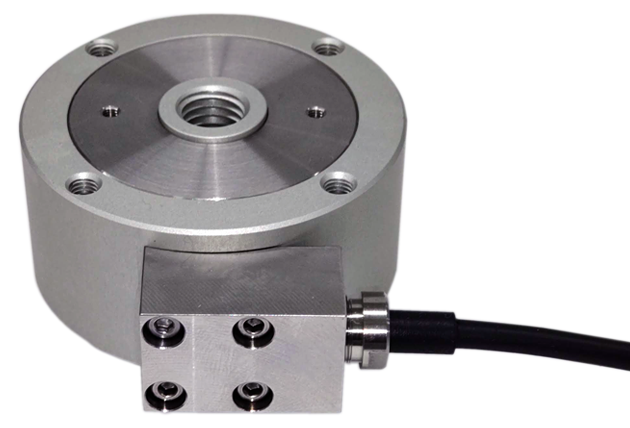

Waterproof load cell WTCLP-NA

Waterproof load cell with a water pressure resistance of 1.5 MPa for installation in soil testing equipment.

Waterproof load cell WTCLP-NA
Features
  • Outer diameter: φ64, height: 31mm
  • Rated output: Approx. 2mV/V
  • Structure not affected by pressure fluctuation
  • Protection class: Equivalent to IP 68 *Water pressure resistance: 1.5 MPa
  • Equivalent to IP 68 *Water pressure resistance: 1.5 MPa

  • Specifications
    Type Capacity Rated output Non-linearity Temperature
    range
    WTCLP-500NA 500N

    Approx. 2mV/V
    (4000x10-6 strain)

    		 0.5%RO -20 to +80℃
    WTCLP-1KNA 1kN
    WTCLP-2KNA 2kN
    WTCLP-5KNA 5kN
    WTCLP-10KNA 10kN
