Measure Type Displacement Transducer DP-E

DP-E Tape Measure Type Displacement Transducer 5000mm

The DP-E is a displacement transducer designed for measurement of large displacement. A stainless steel wire is drawn out to measure the displacement. The wire tension is constant regardless of the displacement. It is a small and light transducer with excellent accuracy.

Protection ratings : IP 40 equivalent

DP-E Tape Measure Type Displacement Transducer
Features
  • Large displacement up to 5000 mm is possible
  • Wire tension is constant
  • Easy handling

  • Specifications

    Type Capacity Rated output Sensitivity
    (x10-6 strain/mm)
    Non-
    linearity
    Temperature
    range
    DP-5000E 5000 mm 5 mV/V
    (10000×10-6 strain) ±0.3 %
    2 0.3 %RO -10 to +80 ℃
    (no condensation)

    Output polarity

    img-trout-02

    Measurement moves in the plus direction with regard to the direction the wire is drawn out in.

High Sensitive Displacement Transducer CDP-D

CDP-D Displacement Transducer with dual ports 50 to 100mmCE

The CDP-D displacement transducer is the CDP displacement transducer with dual isolated I/O ports. For example, one set of input and output cables can be connected to an analog measuring instrument and the other set to a digital measuring instrument. With two different types of measuring equipment connected to this transducer, simultaneous measurements can be made without interference.

Protection ratings : IP 40 equivalent

CDP-D Displacement Transducer with dual ports
Features
  • Measurement with two readout units
  • High precision, High output
  • Excellent response
  • Easy handling
  • Specifications

    Type Capacity Rated output Sensitivity
    (×10-6 strain/mm)
    Non-
    linearity
    Temperature
    range
    CDP-50-D 50 mm 5 mV/V
    (10000×10-6 strain)
    ±0.1 %
    200 0.1 %RO -10 to +60 ℃
    (no condensation)
    CDP-100-D 100 mm 100

    Output polarity

    img-trout-01_0

    Measurement moves in the minus direction when the shaft is pushed inward.

Dynamic Strainmeters Optional Accessory Bridge Boxes

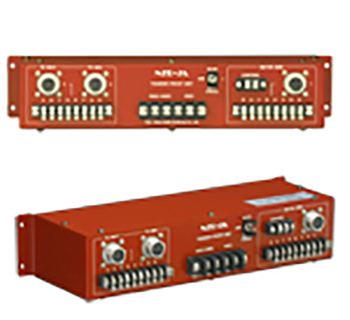

Bridge Boxes

The bridge boxes are used for connecting strain gauges in several bridge methods including quarter bridge and half bridge. Fixed resistors for configuring a Wheat stone bridge circuit are inside of the bridge box. For strain gauge based transducers of full bridge configuration, if the transducer is without connector plug on its cable end, it is connected to a dynamic strainmeter using a bridge box by connecting cable wires to the bridge box terminals. The bridge method is determined by the way of connection to the terminals or by the setting of switches depending on the type of bridge box.

  • 小型ブリッジボックス SB-121A/SB-351A

    These are compact 1-point bridge boxes. Switch operation allows easy switching to any of these bridge methods: quarter bridge 2-wire, quarter bridge 3-wire, half bridge, and full bridge. A lead wire can be connected by both soldering and screwing on.
    Discontinued product

    Type SB-121A/SB-351A
    Number of channels 1 channel
    Bridge method Quarter Bridge 3-wire (Quarter Bridge with short-circuit bar)
    SB-121A : 120 Ω
    SB-351A : 350 Ω
    Half Bridge, Full Bridge
    60 to 1000 Ω
    Connection Screwing or soldering
    Cable ø6 mm, 4-core shielded cable 3 m with NDIS 7-pin plug
    Dimensions 35(W) x 39(H) x 91(D) mm (except projections / bracket / cable)
    Weight Approx. 160 g (except bracket / cable / connector)



  • Bridge Box SB-120B/SB-350B

    ブリッジボックス SB-120B/SB-350B

    These are used when connecting strain gauges by methods such as quarter bridge 2-wire and half bridge.
    They contain resistors for configuring a bridge circuit. Even with full bridge transducers, a bridge box can be used to connect to the terminal where the cable end does not have a connector plug. The bridge configuration is determined by the connection to the terminal.

    Type SB-120B/SB-350B
    Number of channels 1 channel
    Bridge method Quarter Bridge, Quarter Bridge 3-wire, Opposite Half Bridge,
    Opposite Half Bridge 3-wire
    SB-120B: 120 Ω
    SB-350B: 350 Ω
    Half Bridge, Full Bridge
    60 to 1000 Ω
    Connection Screwing or soldering
    Cable ø9 mm, 4-core shielded cable 3 m with NDIS 7-pin plug
    Dimensions 65(W) x 40(H) x 110(D) mm (except projecting parts)
    Weight Approx. 0.7 kg



  • Bridge Box SB-128A/SB-128A-10/SB-358A

    ブリッジボックス SB-128A/SB-128A-10/SB-358A

    These are bridge boxes of 8-channel and 10-channel configuration.

    Type SB-128A/SB-128A-10/SB-358A
    Number of channels 8 channel (SB-128A/SB-358A)
    10 channel (SB-128A-10)
    Bridge method Quarter Bridge, Quarter Bridge 3-wire, Opposite Half Bridge, Opposite Half Bridge 3-wire
    SB-128A/SB-128A-10: 120 Ω
    SB-358A: 350 Ω
    Half Bridge, Full Bridge
    60 to 1000 Ω
    Connection Screwing or soldering
    Dimensions SB-128A/SB-358A : 240(W) x 33(H) x 150(D) mm (except projecting parts)
    SB-128A-10 : 300(W) x 33(H) x 150(D) mm (except projecting parts)
    Weight Approx. 2 kg
    Connection cable CR-612 attached



  • Bridge Box SB-123A/SB-353ACE

    汎用小型 ブリッジボックス SB-123A

    This is a compact universal bridge box employing a clamp-type quick-connecting terminal. Slide switches allow easy switching to any of six bridge methods: quarter bridge 2-wire, quarter bridge 3-wire, half bridge, full bridge, opposite arm half bridge 2-wire, and opposite arm half bridge 3-wire.

    Type SB-123A/SB-353A
    Number of channels 1 channel
    Bridge method Quarter Bridge, Quarter Bridge 3-wire, Opposite Half Bridge,
    Opposite Half Bridge 3-wire
    SB-123A : 120 Ω
    SB-353A : 350 Ω
    Half Bridge, Full Bridge : 60 to 1000 Ω
    Connecting terminal Clamp type quick connecting terminal
    Dimensions 30(W) x 30(H) x 90(D) mm (except projecting parts)
    Weight Approx. 100 g
    Option CR-612 attached
  • Bridge Box SB-120DG-1R2/1R3/SB-350DG-1R2/1R3/SB-120DG-4RCE

    超小型ブリッジボックス SB-120DG-1R2 / SB-120DG-1R3

    These are bridge boxes that allow clamp-type quick connection to a measuring instrument. Since no cable is required between the instrument and the bridge box, the instrument can be placed compactly.
    SB120DG-1R2 accommodates quarter bridge 2-wire system, and SB120DG-1R3 accommodates quarter bridge 3-wire system.

    Type SB-120DG-1R2/
    SB-350DG-1R2
    SB-120DG-1R3/
    SB-350DG-1R3
    SB-120DG-4R
    Bridge method Quarter Bridge
    2-wire 120 Ω/350 Ω
    Quarter Bridge
    3-wire 120 Ω/350 Ω
    Full bridge 120 Ω/350 Ω
    Number of channels 1 channel
    Connecting terminal Clamp type quick connecting terminal
    Dimensions 17(W) x 18(H) x 63(D) mm
    (except projecting parts)
    22(W) x 18(H) x 63(D) mm
    (except projecting parts)
    Weight Approx. 50 g



  • Bridge Box SB-120SBCE

    ブリッジボックス SB-120SB-8/SB-120SB-10

    A single SB-120SB bridge box can be used as a relay for a strain gauge type transducer with NDIS connector. Slide switches allow easy switching of bridge method. A lead wire can be connected by both soldering and screwing on.
    Number of input points for a single bridge box can be any of five types, from 2 points to 10 points.

    Type SB-120SB-8/SB-120SB-10
    Number of channels 2 channels : SB-120SB-2
    4 channels : SB-120SB-4
    6 channels : SB-120SB-6
    8 channels : SB-120SB-8
    10 channels : SB-120SB-10
    Input Connector Terminal : M3 x 5P terminal
    Connectors : NDIS 7P connector receptacle
    Bridge method Quarter Bridge 3-wire (Quarter Bridge with short-circuit bar)
    120 Ω
    Half Bridge, Full Bridge
    60 to 1000 Ω
    Connection Screwing, soldering or plugging
    Dimensions SB-120SB-8 : 205(W)×35(H)×100(D)mm
    SB-120SB-10 : 255(W)×35(H)×100(D)mm
    Weight SB-120SB-8 : Approx. 1.2kg
    SB-120SB-10 : Approx. 1.4kg
    Option CR-612 attached (8pcs. for SB-120SB-8, 10pcs. for SB-120SB-10)



  • Bridge Box SB-122ACE

    1ゲージ法2線式対応 ブリッジボックス SB-122A

    This bridge box can be configured in 2, 4, 6, 8 and 10 channels. The bridge method can easily be chosen among quarter bridge, quarter bridge 3-wire, half bridge and full bridge by the setting of switches.

    Type SB-122A-2/4/6/8/10
    Number of channels SB-122A-2 : 2 channel
    SB-122A-4 : 4 channel
    SB-122A-6 : 6 channel
    SB-122A-8 : 8 channel
    SB-122A-10 : 10 channel
    Bridge method Quarter Bridge 2-wire, Quarter Bridge 3-wire 120 Ω
    Half Bridge, Full Bridge 60 to 1000 Ω
    Connection Screwing or soldering
    Dimensions SB-122A-2 : 55(W)×35(H)×100(D)mm
    SB-122A-4 : 105(W)×35(H)×100(D)mm
    SB-122A-6 : 155(W)×35(H)×100(D)mm
    SB-122A-8 : 205(W)×35(H)×100(D)mm
    SB-122A-10 : 255(W)×35(H)×100(D)mm
    Weight SB-122A-2 : Approx. 0.4kg
    SB-122A-4 : Approx. 0.6kg
    SB-122A-6 : Approx. 0.8kg
    SB-122A-8 : Approx. 1.0kg
    SB-122A-10 : Approx. 1.2kg
    Option CR-612 attached (the same quantity as the number of channels)



  • Bridge Box SB-120PYCE

    塑性域測定対応 ブリッジボックス SB-120PY

    This is a bridge box capable of measurement in post-yield (large strain) range. Bridge method is chosen by the setting of switches, and measurement range between normal and large strain is also set by a switch. When setting the large strain measurement, sensitivity is decreased to 1/10 of the normal sensitivity. Using a dynamic strainmeter having measurement range of 20000 x 10-6 strain for example, it is possible to measure up to 200000 x 10-6 strain. The large strain measurement is possible in quarter bridge method. The number of channels is available in 2, 4, 6, 8 and 10.

    Type SB-120PY-2/4/6/8/10
    Number of channels SB-120PY-2 : 2 channel
    SB-120PY-4 : 4 channel
    SB-120PY-6 : 6 channel
    SB-120PY-8 : 8 channel
    SB-120PY-10 : 10 channel
    Bridge method
    Normal range
    Quarter bridge 2-wire (Quarter bridge with short-circuit between B and C), Quarter bridge 3-wire 120 Ω
    Half bridge, Full bridge 60 to 1000 Ω
    Bridge method
    Large Strain range
    Quarter bridge 2-wire (Quarter bridge with short-circuit between B and C), Quarter bridge 3-wire 120 Ω
    Connection Screwing or soldering
    Dimensions SB-120PY-2: 55(W)×35(H)×100(D)mm
    SB-120PY-4: 105(W)×35(H)×100(D)mm
    SB-120PY-6: 155(W)×35(H)×100(D)mm
    SB-120PY-8: 205(W)×35(H)×100(D)mm
    SB-120PY-10: 255(W)×35(H)×100(D)mm
    (except projecting parts)
    Weight SB-120PY-2: 0.4kg
    SB-120PY-4: 0.6Kg
    SB-120PY-6: 0.8kg
    SB-120PY-8: 1.0kg
    SB-120PY-10: 1.2kg
    Option CR-612 attached (the same quantity as the number of channels)



  • SB-120DD-1R/4R/SB-350DD-1RCE

    SB-120DD-1R/4R/SB-350DD-1RThis is a bridge box for measuring instruments, compact strain recorder DC-204R, and multi-recorder TMR-321/-323/-221/-223 using a miniplug (PRC07-P8M). Since no cable is required between the instrument and the bridge box, the instrument can be placed compactly. SB-120DD-1R and SB-350DD-1R accommodate quarter bridge 3-wire system (quarter bridge 2-wire accommodates B-B' short) and half bridge methods, and SB-120DD-4R accommodates full bridge method.
    When using DC-204R/-204Ra, a CR-6185 sensor cable enables the remote sensing function between an instrument and the bridge box, removing any causes of error from conductor resistance in the cable or ambient temperature change to achieve highly accurate measurement.

    Number of channels 1 channel
    Bridge method
    Quarter bridge 3-wire SB-120DD-1R 120Ω
    SB-350DD-1R 350Ω
    Half bridge SB-120DD-1R 120、350Ω
    SB-350DD-1R 120、350Ω
    Full bridge SB-120DD-4R 120 ~ 1000Ω
    Connection Screwing
    Operational temperature/humidity range 0 to +50℃ 85%RH or less (except condensation)
    Dimensions 14 (W) × 19 (H) × 59 (D) mm (except projections)
    Weight Approx. 22 g

High Sensitive Displacement Transducer CDP

CDP Displacement Transducer 5 to 100mmCE

The CDP is a compact and easy-to-operate displacement transducer. Because it is designed to produce a large output and to deliver stable performance, highly accurate measurements can be made. It is suitable for both static and dynamic measurements.

Protection ratings : IP 40 equivalent

高感度変位計 CDP
Features
  • High precision, High output
  • Excellent Response
  • Easy handling
  • Specifications

    Type Capacity Rated output Sensitivity
    (x10-6 strain/mm)
    Non-
    linearity
    Temperature
    range
    CDP-5 5 mm 5 mV/V
    (10000x10-6 strain) ±0.1 %
    2000 0.15 %RO -10 to +60 ℃
     (no condensation)
    CDP-10 10 mm 5 mV/V
    (10000x10-6 strain) ±0.1 %
    1000 0.1%RO
    CDP-25 25 mm 6.25mV/V
    (12500x10-6 strain) ±0.1 %
    500
    CDP-50 50 mm 5mV/V
    (10000x10-6 strain) ±0.1 %
    200
    CDP-100 100 mm 100

    Output polarity

    img-trout-01-1

    Measurement moves in the minus direction when the shaft is pushed inward.

Bolt axial force measuring wrench BTMP-10A

Bolt axial force measuring wrench BTMP-10A

The bolt axial force can be easily masured by merely sticking the exclusive tetminal on the head of a hexagonal bolt and setting the wrench on the bolt head. There is no need for attaching or detaching the leadwires when tightening the bolt.
For bolt diameters other than M10, contact us for details.

Bolt axial force measuring wrench BTMP-10A
Features
  • Eliminates the need for removable at the conclusion of the leads for measuring bolts (TFB-4S dedicated terminal is required separately)
  • 1 through 4 gauge wire, there is no change in the direction of a contact resistance value

High Sensitive Displacement Transducer CDP-M

CDP-M Small Displacement Transducer 5 to 100mmCE

The CDP-M is a small and high sensitive displacement transducer. Compared with conventional CDP series, its output is the same but its diameter is less by 50 - 20% than that of CDP, and its temperature range is extended up to +80°C. The CDP-M with cable output along the measurement axis and the CDP-MT with cable output vertical to the axis are available. The transducer can be used not only for static measurement but also for quasi-dynamic measurement. A fixing holder is supplied as a standard accessory. Options include ordinary magnet stand MB-B and small MB-PSL specified for the CDP-M series.

Protection rantings : IP 40 equivalent

CDP-M Small Displacement Transducer
Features
  • Compact
  • Easy handling
  • Allowable temperature range -10 to +80℃
  • Lineup of five models: 5 / 10 / 25 / 50 / 100 mm
  • High output of 10000 x 10-6 strain or more
  • CDP-5M/-10M Only CE Marking Compliant
  • Specifications

    Type Capacity Rated output Sensitivity
    (×10-6 strain/mm)
    Non-
    linearity
    Temperature
    range
    CDP-5M
    CDP-5MT
    5 mm 5 mV/V
    (10000x10-6 strain) ±0.3 %
    2000 0.3 %RO -10 to +80 ℃
     (no condensation)
    CDP-10M
    CDP-10MT
    10 mm 1000
    CDP-25M
    CDP-25MT
    25 mm 6.25 mV/V
    (12500x10-6 strain) ±0.3 %
    500
    CDP-50M
    CDP-50MT
    50 mm 5 mV/V
    (10000x10-6 strain) ±0.3 %
    200
    CDP-100M
    CDP-100MT
    100 mm 100

    Output polarity

    img-trout-01

    Measurement moves in the minus direction when the shaft is pushed inward.
