The slip-ring type 6-component wheel force measuring system is composed of the 6-component wheel force transducer SLW-NC as the sensor and the 6-component force analyzer MFT-306 as the measuring device. The analyzer MFT-306 is an ultracompact model at 160 (W) × 25 (H) × 75 (D) mm. Settings and monitor display are by computer, and control is possible of up to 4 analyzers.
![output polarity](/sites/default/files/inline-images/img-slw-nc-image-01_0.png)

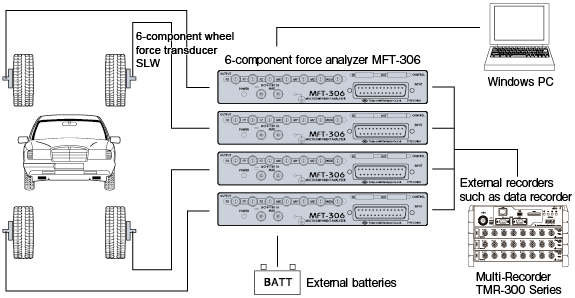

System block diagram
![img-slwnc-04_0e](/sites/default/files/inline-images/img-slwnc-04_0e.png)
