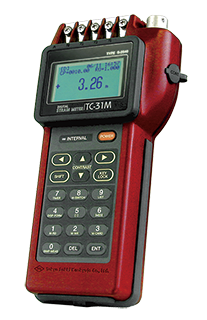

Digital Static Strainmeter TC-31M

The TC-31M is a small and light weight strainmeter dedicated to measurement of full bridge method. It is suited to measurement of strain gauge type transducers in field use. In addition, unmanned long term measurement is possible using its data memory and sleep interval functions.

Digital Static Strainmeter TC-31M
Features
  • Handheld strainmeter having drip proof construction equivalent to IP-54
  • Measurement range is ±30000×10-6 strain with resolution of 1×10-6 strain
  • Equipped with data memory of 10000 data
  • Compatible with flash memory card of 32/64/128MB
  • Alkaline dry battery (LR6×4) drive
  • Sleep interval function provided
  • Specifications

    Type TC-31M
    Number of measurement point 1
    Measuring range

    ±15mV/V (±30000 x 10-6 strain)

    Measuring object Strain gauge type transducers (120 to 1000Ω in full bridge)
    Measuring speed 200ms
    Dimensions 102(W) x 55(H) x 223(D)mm
    (except projecting parts)
    Weight Approx. 800g
    Power supply 4 AA-size (LR6) alkaline batteries
    or exclusive AC adaptor (option)
