Network Driver

Network driver ND-100

TML-NET is our unique network that enables measurement control and data transfer on a two-wire network line and also provides power supply. Commands and data on the network are transferred together with the clock, making this unique network capable of bi-directional communication. The network module comprises a measuring circuit in the vicinity of strain gages, DC voltage signals and T-type thermocouples, and digitises the measurement data. The digitised data is transferred to the data logger by a network driver connected to the network. As the data is transferred as a digitised signal, there is no influence of sensitivity degradation or cable insulation degradation due to cable extension, and stable measurements can be made over a long period of time. Another advantage is that, with simple wiring, correlations such as strain, strain-gauge transducers, voltage and temperature can be measured, processed and recorded in batches for the required number of channels.

ND-100

  • Specifications
    Type ND-100
    Number of connection 100 modules for one ND-100 (1000 measurement points at the maximum)
    Applicable data logger TDS-540
    TML-NET connection Terminal blocks
    Features Converts 3-wire signal into 2-wire signal
    Supplies power source to network modules
    Dimensions 150（W）×45（H）×100（D）mm（except projecting parts）
    Power source When AC power source is supplied: AC100-240V 50/60 Hz 80VA max.

System Block Diagram

ND-100 System Block

More Information

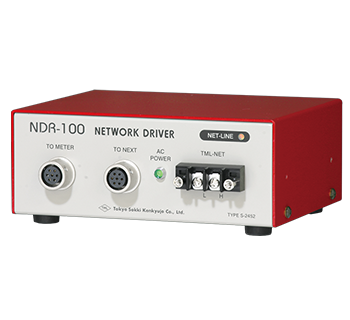

Network driver NDR-100

This is a driver interface to drive network modules from a TDS-series measuring instrument*. Can also be used in combination with a single ASW-50C/SSW-50C.
* With TDS-540, ASW/SSW unit installation is required.

Network driver NDR-100

  • Specifications
    Type NDR-100
    Number of connection 100 modules for one NDR-100 (1000 measurement points at the maximum)
    Applicable data logger TDS-630, TDS-530, TDS-602, TDS-303, TDS-540-01/-03
    TML-NET connection Terminal blocks
    Features Converts 3-wire signal into 2-wire signal.
    Supplies power source to network modules
    Dimensions 160(W) x 60(H) x 120(D) mm (except projecting parts)
    Power source When AC power source is supplied: AC85-250 V 50Hz/60 Hz 90 VA max.

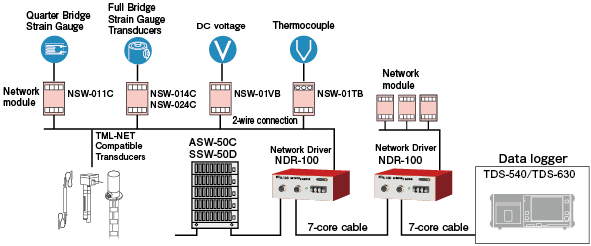

System Block Diagram

ndr100system_e

In case of 4-wire connection, two exclusive 2-core cables should be used.

More Information

Network Interface NIF-100

The NIF-100 is a driver interface used to drive each network module directly from a personal computer, without using a data logger.

Network Interface NIF-100

  • Specifications
    Type NIF-100
    Number of connection 100 modules
    Function Converts RS-232C interface into 2-wire Signal
    Supplies power source to network modules
    Dimensions 235(W) x 50(H) x 160(D) mm (except projecting parts)
    Weight Approx. 1.2 kg
    Power source When AC power source is supplied: AC85-250 V 50/60 Hz 90 VA max.

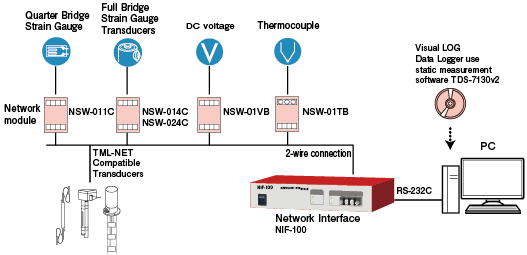

System Block Diagram

nif100system_e

In case of 4-wire connection, two exclusive 2-core cables should be used.
