Reinforcing Bar Meter

KSA-A Reinforcing Bar Meter 300 N/mm2

The KSA-A are used to measure stress applied to structural reinforcing bars, and are normally welded at both ends to form part of the reinforcement arrangement.



Protection ratings : IP 68 equivalent

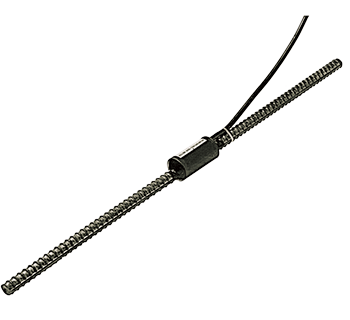

KSA-A Reinforcing Bar Meter
Features
  • Temperature measuring function to measure relative temperature
  • Long-term stable measurement
  • Capable of measuring thermal stress
  • Specifications

    Type Capacity Rated output Non-linearity Temperature range
    KSA-10A 300 N/mm2 Approx. 2.2 mV/V (4400 x 10-6 strain) 1 %RO -20 to +80 ℃
    KSA-13A
    KSA-16A
    KSA-19A
    KSA-22A
    KSA-25A
    KSA-29A
    KSA-32A

KSAT-A Reinforcing Bar Meter 300 N/mm2

This reinforcing bar meter is the same as model KSA-A, using a thermocouple for the temperature measuring function.



Protection ratings : IP 68 equivalent



KSAT-A Reinforcing Bar Meter
Features
  • Temperature measuring function to measure relative temperature
  • Long-term stable measurement
  • Capable of measuring thermal stress
  • Specifications

    Type Capacity Rated output Non-linearity Temperature range
    KSAT-10A 300 N/mm2 Approx. 2.2 mV/V (4400 x 10-6 strain) 1 %RO -20 to +80 ℃
    KSAT-13A
    KSAT-16A
    KSAT-19A
    KSAT-22A
    KSAT-25A
    KSAT-29A
    KSAT-32A
