Tension/Compression Load Cell

TCLB-NA Tension/Compression Load Cell 50N to 200N

The TCLB-NA Tension/Compression Universal Load Cell is a low capacity load cell. It can be used for high precision measurement because the internal structure uses both ends fixation beam for the strain sensing element.

Protection ratings :
 TCLB-50NA IP 40 equivalent
 TCLB-100NA/-200NA IP 42 equivalent

TCLB-NA Tension/Compression Load Cell
Features
  • Low-capacity, High precision
  • Small, Lightweight

  • Specifications
    Type Capacity Rated output Non-linearity Temperature
    range
    TCLB-50NA 50 N

    1.5 mV/V
    (3000x10-6 strain) ±0.5 %

    		 0.1 %RO -20 to +70 ℃
    TCLB-100NA 100 N
    TCLB-200NA 200 N

    Output polarity

    Measurement moves in the plus direction with regard to increased tensile force, and in the minus direction with regard to increased compressing force.

More Information

TCLA-NB Tension/Compression Universal Load Cell 500N to 20kNCE

The TCLA-NB Tension/Compression Universal Load Cell comes to much smaller and lightweight than conventional TCLA-NA. High capacity ranges of 10kN and 20kN are added on the line. It is hermetically sealed, enabling highly precise and consistent measurement.

Protection ratings : IP 67 equivalent

TCLA-NB Tension/Compression Universal Load Cell 500N to 20kN
Features
  • Small, Lightweight
  • Tension and compression
  • Hermetically sealed structure
  • Stable measurement
  • Easy handling

  • Specifications
    Type Capacity Rated output Non-linearity Temperature
    range
    TCLA-500NB 500 N

    1.5 mV/V(3000×10-6 strain) ± 2%

    		 0.3 %RO -20 to +70 ℃
    TCLA-1KNB 1 kN

    1.5 mV/V(3000×10-6 strain) ±1 %

    		 0.2 %RO
    TCLA-2KNB 2 kN

    2 mV/V(4000x10-6 strain) ±1 %
    TCLA-5KNB 5 kN
    TCLA-10KNB 10 kN
    TCLA-20KNB 20 kN

    Output polarity

    Measurement moves in the plus direction with regard to increased tensile force, and in the minus direction with regard to increased compressing force.

More Information

TCLK-NA Tension/Compression Load Cell 5kN to 50kNCE

The TCLK-NA Tension/Compression Universal Load Cell has a low profile construction that serves to save installation space.

Protection ratings : IP 67 equivalent

TCLK-NA Tension/Compression Load Cell
Features
  • Hermetically sealed structure
  • Stable measurement
  • Small, Lightweight, Low height
  • Small deflection
  • Suitable for testing machines

  • Specifications
    Type Capacity Rated output Non-linearity Temperature
    range
    TCLK-5KNA 5 kN

    2 mV/V (4000×10-6 strain) ±1 %

    		 0.1 %RO -20 to +70 ℃
    TCLK-10KNA 10 kN
    TCLK-20KNA 20 kN
    TCLK-50KNA 50 kN

    Output polarity

    Measurement moves in the plus direction with regard to increased tensile force, and in the minus direction with regard to increased compressing force.

More Information

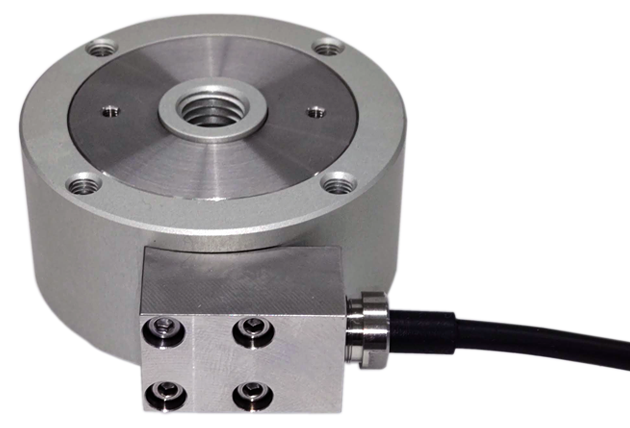

TCLP-NB Tension/Compression Load Cell 10kN to 2MNCE

The TCLP-NB Tension/Compression Universal Load Cell is a load cell widely used in applications such as measuirng crane and jack loads because it offers excellent consistency.

This load cell is available with built-in two isolated input / output on request.

Protection ratings : IP 65 equivalent

TCLP-NB Tension/Compression Load Cell
Features
  • Easy handling
  • Excellent stability
  • Many load ranges for selection according to purposes

  • Specifications
    Type Capacity Rated output Non-linearity Temperature
    range
    TCLP-10KNB 10 kN

    1mV/V
    (2000x10-6 strain) ±0.5 %

    		 0.1 %RO -20 to +70 °C
    TCLP-20KNB 20 kN
    TCLP-30KNB 30 kN
    TCLP-50KNB 50 kN
    TCLP-100KNB 100 kN
    TCLP-200KNB 200 kN
    TCLP-300KNB 300 kN
    TCLP-500KNB 500 kN
    TCLP-1MNB 1 MN
    TCLP-1.5MNB 1.5 MN 0.3 %RO
    TCLP-2MNB 2 MN

    Output polarity

    Measurement moves in the plus direction with regard to increased tensile force, and in the minus direction with regard to increased compressing force.

More Information

TCLU-NA Tension/Compression Load Cell 10kN to 200kNCE

The TCLU-NA Tension/Compression Universal Load Cell is an inert-gas encased load cell in a hermetically sealed package. It can take highly precise and consistent measurements over long periods of time, and is used primarily in applications such as measuring crane and jack loads.

This load cell is available with built-in two isolated input / output on request .

Protection ratings : IP 65 equivalent

TCLU-NA Tension/Compression Load Cell
Features
  • High precision,High output
  • Excellent stability
  • Easy handling

  • Specifications
    Type Capacity Rated output Non-linearity Temperature
    range
    TCLU-10KNA 10kN

    2 mV/V
    (4000x10-6 strain) ±0.5 %

    		 0.15 %RO -30 to +80 ℃
    TCLU-20KNA 20kN
    TCLU-50KNA 50kN
    TCLU-100KNA 100kN
    TCLU-200KNA 200kN

    Output polarity

    Measurement moves in the plus direction with regard to increased tensile force, and in the minus direction with regard to increased compressing force.

More Information

TCLN-NA Tension/Compression Load Cell 500N to 5kN

Compared with TML ordinary Tension/Compression Universal Load Cells, the TCLN-NA is very small and light model. The Input/Output cable is as thin as 3mm in diameter for easiness to handle.

Protection ratings : IP 67 equivalent

TCLN-NA Tension/Compression Load Cell
Features
  • Airtight structure enabling stable measurement
  • Compact and lightweight, easy handling

  • Specifications
    Type Capacity Rated output Non-linearity Temperature range
    TCLN-500NA 500N 1mV/V
    (2000×10-6 strain)±20%    		 0.5%RO -20 to +70℃
    TCLN-1KNA 1kN
    TCLN-2KNA 2kN
    TCLN-5KNA 5kN

    Output polarity

    Measurement moves in the plus direction with regard to increased tensile force, and in the minus direction with regard to increased compressing force.

More Information
