High Temperature Weldable Strain Gauge

AW series High temperature Weldable strain gauge

These strain gauges have strain sensing elements fully encapsulated in corrosion-resisting metal tubes (except for AW-6). They are suited to use in various environment including in liquids or gases. Installation is easily done using dedicated spot welder W-50R/W-50RB

AW series High temperature Weldable strain gauge
Features

AWM-8 Quarter bridge with 3-wire systemCE_logo

The AWM is usable up to 300℃ for both static and dynamic measurement. The backing material is available in Inconel 600 or SUS304 which should be selected according to the test specimen material.

Main object material Metal
Operational temperature -196 to +300℃
Temperature compensation range RT to +300℃
Bonding adhesive Spot welding (TML spot welder W-50R is required)
Backing Inconel 600, SUS304
Element Special alloy
Strain limit 1% (10000 x 10-6 strain)
Fatigue life at room temperature 1×106 (±1000×10-6 strain)

  • Specifications
    awm8-01
    Type Gauge
    length
    (mm)    		 Gauge base Test specimen Resistance in (Ω)
    Dimensions
    (mm)    		 Materials
    AWM-8-1A-2-11.0 8 L16 x W5 x T0.7 Inconel 600 Mild steel 120
    AWM-8-1B-2-17.0 SUS304 Stainless

    Each package contains one strain gauge.
    Other cable length available on request
    (Made to order by every 1 m for MI cable and by every 0.5 m for vinyl cable)

AWMD-5, AWMD-8 (for dynamic measurement only : -196 to +800℃) Full bridgeCE_logo

The AWMD is applicable up to 800°C and is dedicated to dynamic measurement. A high pass filter is a standard accessory. Using the high pass filter, unnecessary direct current component and low frequency component (thermal output, drift, etc.) are cancelled. A DC exciting dynamic strainmeter such as DC-96A/DC-97A, smart strain recorder such as DC-204R, or multi-recorder TMR-200 series should be used for the measurement.

Main object material Metal
Operational temperature -196 to +800℃
Temperature compensation range -
Bonding adhesive Spot welding (TML spot welder W-50R is required)
Backing Inconel 600
Element Special alloy
Strain limit 1% (10000 x 10-6 strain)
Fatigue life at room temperature 1 to 106 (±1000 x 10-6 strain)

  • Specifications
    awmd-5-8
    Type Gauge
    length
    (mm)    		 Gauge base Test specimen Resistance in (Ω)
    Dimensions (mm) Material
    AWMD-5-AKM-2(6F)-1.6Hz 5 L10 x W3 x T0.7 Inconel 600 Inconel 600 equivalent 60
    AWMD-8-A-2-1.6Hz 8 L16 x  W5 x T0.7 120

    Each package contains one strain gauge.
    Other cable length available on request
    (Made to order by every 1 m for MI cable and by every 0.5 m for vinyl cable)

AWH-4/AWH-8 Full bridgeCE_logo

The backing material is available in Inconel 600 or SUS304 which should be selected according to the test specimen material. Although it has half bridge construction consisting of active and dummy gauges, the measurement is made by full bridge method using the supplied temperature compensation circuit board. The maximum operational temperature is 600°C for static measurement and 650°C for dynamic measurement.

Main object material Metal
Operational temperature Static:
-196 to +600℃
Dynamic:
-196 to +650℃
Temperature compensation range Static:
RT to +600℃
Dynamic:
-
Bonding adhesive Spot welding (TML spot welder W-50R is required)
Backing SUS304 or Inconel 600
Element Special alloy
Strain limit 0.6% (6000 x 10-6 strain)
Fatigue life at room temperature 1 x 106 (±1000 x 10-6 strain)

  • Specifications
    AWH-8
    Type A B C
    AWH-4 3 10 8
    AWH-8 5 16 16
    Type Gauge
    length
    (mm)    		 Gauge base Test specimen Resistance in (Ω)
    Dimensions (mm) Materials
    AWH-4-7A-2-11.0 4 L10 x W3 x T0.8 Inconel 600 Mild steel 60
    AWH-4-7B-2-17.0 SUS304 Stainless
    AWH-8-7A-2-11.0 8 L16 x W5 x T0.8 Inconel 600 Mild steel 120
    AWH-8-7B-2-17.0 SUS304 Stainless

    Each package contains one strain gauge.
    Other cable length available on request
    (Made to order by every 1 m for MI cable and by every 0.5 m for vinyl cable)

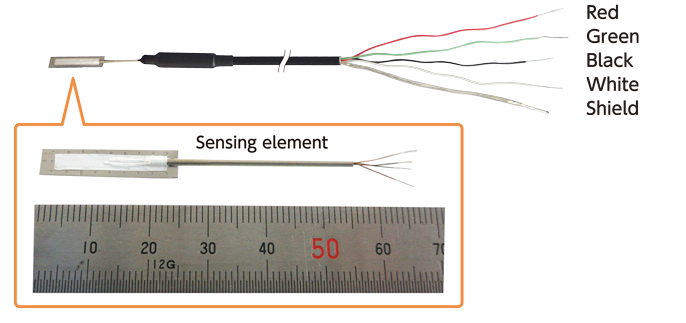

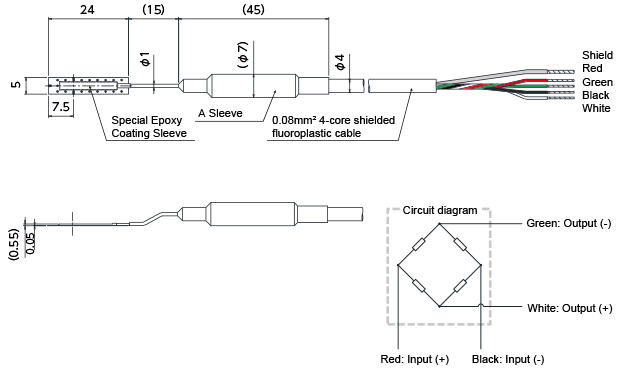

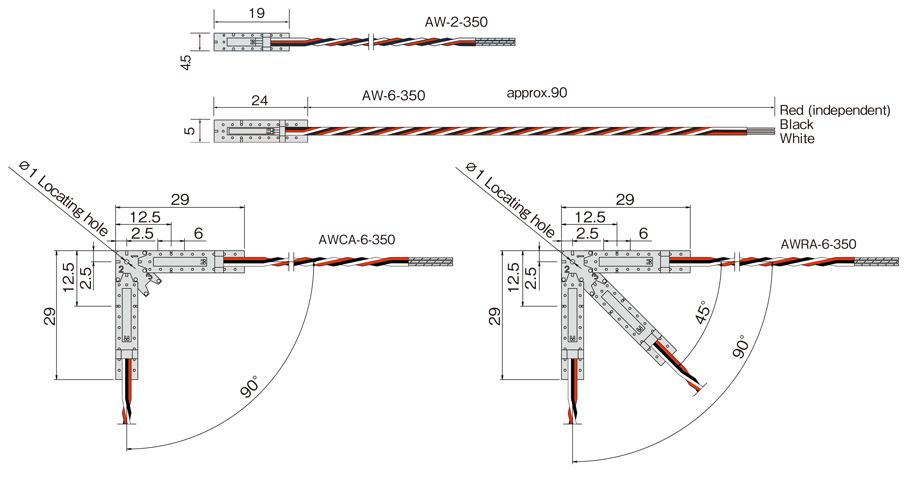

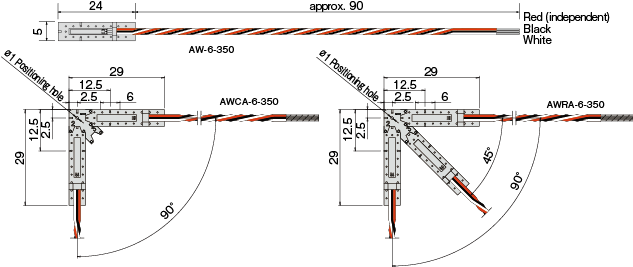

AW-6-350/AWCA-6-350/AWRA-6-350 Quarter bridge with 3-wire system (G.F. 2.1 approx.)CE_logo

This gauge has corrosion-resisting stainless steel base with thickness of 0.08 mm. It is easily installed by using a dedicated spot welder W-50RC.
It is suited to strain measurement up to 300°C, measurement of specimen to which adhesion is not applicable, and/or long term measurement.

Main object material Metal
Operational temperature -196 to +300℃
Temperature compensation range +10 to +100℃
Bonding adhesive Spot welding (TML spot welder W-50R is required)
Backing SUS304
Element Special alloy
Strain limit 0.5% (5000 x 10-6 strain)
Fatigue life at room temperature 1 x 106 (±1000 x 10-6 strain)

  • Specifications

    Leadwire used ø0.2　fluorinated resin (PTFE) leadwire 0.1m
    aw-6
    Type Element Gauge
    length
    (mm)    		 Gauge base Test specimen Resistance in (Ω)
    Dimensions (mm) Material
    AW-6-350-11-4FB01LT Single-element 6 L24 x W5 SUS304 Mild steel 350
    AWCA-6-350-11-4FB01LT 2-element 6 L29 x W29
    AWRA-6-350-11-4FB01LT 3-element 6 L29 x W29

    Each package contains 5 strain gauges.
    Other cable length available on request

AWC-8B Quarter bridge with 3-wire method (G.F. 2.1 approx.)CE

These strain gauges have hermetically sealed construction with the sensing element encapsulated in the stainless steel tube. This construction helps to simplify the coatings for moisture and water proofing, and the strain gauges are suited to strain measurement for long term and/or in harsh environment.

Main object material Metal
Operational temperature -20 to +100℃
Temperature compensation range AWC-8B: +10 to +100℃
Bonding adhesive Spot welding (TML spot welder W-50R is required)
Backing SUS304
Element Special alloy
Strain limit 0.5% (5000 x 10-6 strain)
Fatigue life at room temperature 1 x 106 (±1000 x 10-6 strain)
