Pore Pressure Gauges

KPC-PA/KPD-PA Pore Pressure Gauges
200kPa to 2MPa CE

These pressure gauges, which are one size smaller than the KPA-PA and KPB-PA, are used to measure pore water pressure in soil, sheet piles, piles and boreholes. The KPC-PA is attached to a pile, a diaphragm wall, a sheet pile, etc., and buried in ground to measure pore water pressure. It is also buried singly in ground to measure pore water pressure. The KPD-PA is put in a borehole to measure the pore water pressure in bedrock. The feature of these gauges is the dual structure that makes them highly resistant to lateral pressure. Therefore, high-accuracy measurement can be made even if soil pressure changes markedly.

Protection ratings : IP 68 equivalent

間隙水圧計 KPC-PA/KPD-PA
Features
  • Dual structure not affected by the outer lateral pressure
  • All stainless steel with excellent corrosion resistance
  • Small, easy handling

  • Specifications
    Type Capacity Rated output Non-linearity Temperature range
    KPC-200KPA
    KPD-200KPA    		 200kPa Approx. 0.8 mV/V (1600x10-6 strain) 1.5 %RO 0 to +60 ℃
    (no icing)
    KPC-500KPA
    KPD-500KPA    		 500kPa Approx. 1 mV/V (2000x10-6 strain) 1 %RO
    KPC-1MPA
    KPD-1MPA    		 1MPa
    KPC-2MPA
    KPD-2MPA    		 2MPa

    Output polarity

    Measurement moves in the plus direction with regard to an increase in pressure.

More Information

KPE-PB Small Pore Pressure Gauge 200kPa to 2MPaCE

A small soil pressure gauge to measure pore water pressure in model testing. The dual construction not affected by lateral pressure offers accurate measurement.

Protection ratings : IP 68 equivalent

KPE-PB Small Pore Pressure Gauge
Features
  • Small, lightweight
  • Easy handling
  • Dual structure not affected by the outer lateral pressure
  • Replaceable filters

  • Specifications
    Type Capacity Rated output Non-linearity Temperature range
    KPE-200KPB 200kPa Approx. 1 mV/V (2000x10-6 strain) 1 %RO 0 to +60 ℃
    (no icing)
    KPE-500KPB 500kPa
    KPE-1MPB 1MPa
    KPE-2MPB 2MPa

    Output polarity

    Measurement moves in the plus direction with regard to an increase in pressure.

More Information

Ultracompact Pore Pressure Gauge KPG-PA　50kPa to 200kPaCE

Extremely small pore pressure gauge for use in test and research such as model testing
This is a miniature pore pressure gauge for measurement of pore water pressure
in soil. It is designed for use in model testing, and is applicable to measurement
for about one week under conditions within the specifications.

Protection ratings : IP68 equivalent

KPG-PA
Features
  • Small and lightweight
  • Easy handling
  • Dual casing structure eliminating the influence of external lateral pressure
  • Replaceable filter

  • Specifications
    Type Capacity Rated output Non-linearity Allowable temperature range
    KPG-50KPA 50kPa Approx. 0.5mV/V
    (1000×10-6strain)    		 1％RO 0 to +60°C(No icing)
    KPG-100KPA 100kPa Approx. 0.75mV/V
    (1500×10-6strain)
    KPG-200KPA 200kPa Approx. 1.6mV/V
    (3200×10-6strain)    		 2％RO

    Output polarity

    Measurement moves in the plus direction with regard to an increase in pressure.

More Information

Ultracompact Pore Pressure Gauge KPH-PA  50kPa to 200kPaCE

Extremely small pore pressure gauge for use in test and research such as model testing
This is a miniature pore pressure gauge for measurement of pore water pressure
in soil. It is designed for use in model testing, and is applicable to measurement
for about one week under conditions within the specifications.

Protection ratings : IP68 equivalent

KPH-PA
Features
  • Small and lightweight
  • Easy handling
  • Dual casing structure eliminating the influence of external lateral pressure
  • Replaceable filter

  • Specifications
    Type Capacity Rated output Non-linearity Allowable temperature range
    KPH-50KPA 50kPa Approx. 0.5mV/V
    (1000×10-6strain)    		 1％RO 0 to +60°C(No icing)
    KPH-100KPA 100kPa Approx. 0.75mV/V
    (1500×10-6strain)
    KPH-200KPA 200kPa Approx. 1.6mV/V
    (3200×10-6strain)    		 2％RO

    Output polarity

    Measurement moves in the plus direction with regard to an increase in pressure.

More Information

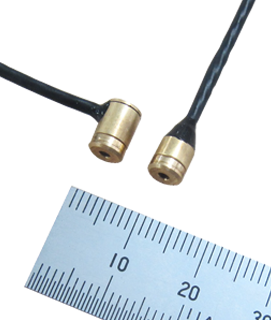

PP-PA High-sensitivity Compact Pore Water Pressure Transducer 200kPa

This is a high-sensitivity, compact pore water pressure gauge for measuring pore water pressure in soil during model experiments. It can measure for approximately one week under specified environmental conditions.

Protection ratings : IP 68 equivalent

PP-200KPA
Features
  • Compact and lightweight
  • High sensitivity (approximately 3 times that of KPG/KPH-200KPA)
  • Made of all stainless steel with excellent corrosion resistance

  • Specifications
    Type Capacity Rated output Non-linearity Temperature range
    PP-200KPA-8V
    PP-200KPA-8H    		 200kPa Approx. 5.0mV/V
    （10000×10－6 strain）    		 0.3%RO 0 to +60℃
    (no icing)

    *: The TDS-540 can use internal switch boxes with serial number COW0220540 and later

    Output polarity

    Measurement moves in the plus direction with regard to an increase in pressure.
