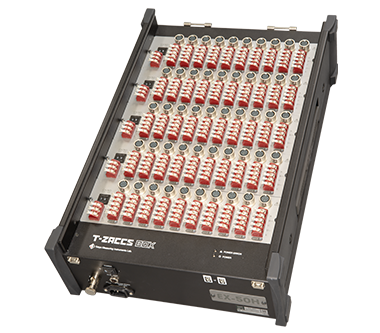

Measurement Box T-ZACCS BOX EX-50HCE

This is a measurement box dedicated to T-ZACCS9 TS-960. The number of measuring point is 50, and various inputs such as strain gauges, strain gauge type transducers, thermocouples, Pt-RTDs and dc voltage can be measured. Owing to the introduction of our unique next-generation A/D conversion method that enables high-speed measurement with high accuracy and stability, and also of ultra high-speed field network that is based on Ethernet, highly accurate and stable measurement is enabled eliminating the influence of various thermoelectromotive forces, thermal zero shift of amplifier, and power line noise. Measurement is possible at intervals of 0.1 seconds in high-speed mode and 0.4 seconds in high-accuracy mode (in 50Hz area) regardless of the number of measuring point.

ex-50h
Features
  • Measures 1000 points in 0.1 seconds at the fastest by the adoption of ultra high-speed field network
  • Highly accurate and stable measurement achieved by the adoption of our unique next-generation A/D conversion method that enables high-speed measurement with high accuracy and stability eliminating the influence of various thermoelectromotive forces, thermal zero shift of amplifier, and power line noise
  • In high-accuracy mode, measures 1000 points in 0.4 seconds (in 50Hz area) even for thermocouple measurement and/or using high-resolution mode
  • A temperature-integrated strain gauge can be measured using one channel
  • Complete compensation method of strain (Comet) provided
  • Various check functions (insulation check, sensitivity check, dispersion check, thermocouple burnout check)

  • Specifications
    Type EX-50H
    Measurement object Strain gauge, Strain gauge type transducer
    DC voltage, Thermocouple, Pt-RTD
    Number of measuring point 50 points
    Measuring speed High-speed mode 0.1 seconds
    High-accuracy mode 0.4 seconds(50Hz) / 0.34 seconds(60Hz)
    Number of connection 20 boxes at maximum
    Extension distance 100 m (between instruments)
    Connection cable EX connection cable (CR-89**)
    External dimensions 320 (W) × 130 (H) × 490 (D) mm
    Weight Approx. 10 kg
    Power supply AC 100 ~ 240 V   50/60 Hz  104 VA Max.
