PCB Stress Measurement and Analysis Software
PCB Testing System PC-760
The PCB Testing System PC-760 is a software package that supports the entire workflow from the measurement and analysis of stress on printed circuit boards to report generation. It consists of test software for acquiring measurement data and data viewer software for analyzing the acquired data and generating reports.
When used with our Multi Recorder Series, the system enables the measurement and evaluation of stress applied to printed circuit boards. Using measurement data obtained with rosette strain gauges, the software calculates principal strain, principal strain direction, and strain rate. It also supports report output in accordance with IPC-9704A, the industry standard for printed circuit assembly strain gage testing.

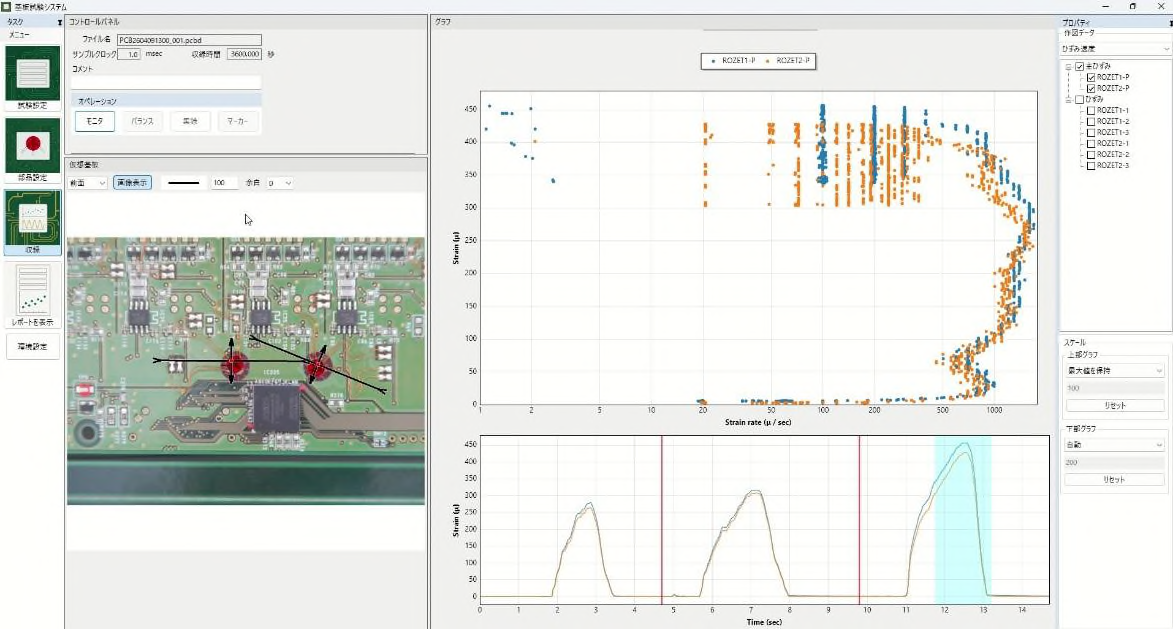

<PCB Report Viewer>
- Features
-
Evaluates stress on printed circuit boards when used with our Multi Recorder Series.
-
Calculates principal strain, principal strain direction, and strain rate using rosette strain gauge measurement data.
-
Supports report output in accordance with IPC-9704A, the industry standard for printed circuit assembly strain gage testing.
-
-

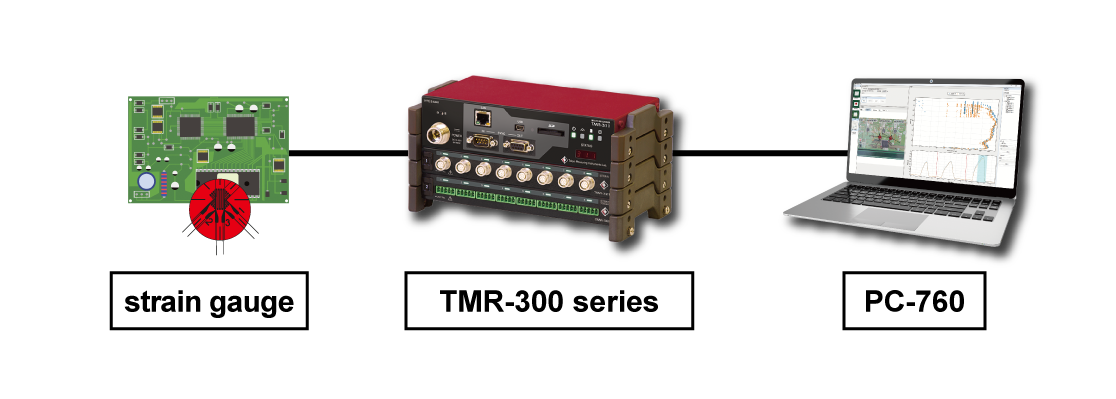

System Configuration
OS / Computer / Interface
OS Windows 10 (64-bit), Windows 11 (64-bit) PC A PC capable of running the above operating systems Memory When using 1 measurement unit: 8 GB or more recommended
When using 2 measurement units: 16 GB or more recommendedCompatible Instruments TML Multi-Recorder TMR-300 Series
TMR-311: 1 unit
TMR-321 or TMR-322: Up to 2 unitsInterface LAN Number of Measurement Points Up to 16 points
