Channel Unit

Channel Unit FSW-10 (for TDS-150)CE

This is a 10-channel unit designed for exclusive use with portable data logger TDS-150. Five numbers of this unit (50 channels) at the maximum can be connected to one TDS-150. Measurement of strain, DC voltage, thermocouple and Pt-RTD are possible. It also accepts measurement of 1-gauge 4-wire method using modular plug for connection.

Channel Unit FSW-10
Features
  • 1-gauge 4-wire method with one-touch connection by modular plug

  • Specifications
    Type FSW-10
    Measuring object Strain, DC voltage, Thermocouple, PtRTD
    Number of measuring channels 10 channels
    Power supply Supplied from data logger

More Information

Channel Unit FSW-10L (for TDS-150)CE

This is a 10-channel unit allowing multiple measurements designed for exclusive use with portable data logger TDS-150. Up to five units (50 channels) can be connected. Allows measurement by strain gauge, strain gauge-type transducer, DC voltage, thermocouple, and Pt-RTD.

Channel Unit FSW-10L
Features
  • Installs compactly without an NDIS connector, etc.

  • Specifications
    Type FSW-10L
    Measuring object Strain, DC voltage, Thermocouple, PtRTD
    Number of measuring channels 10 channels
    Power supply Supplied from data logger

More Information

Channel Unit AU-10/AU-10-05(for TS-360)

To add measuring channels to the TS-360 portable data logger, connect the AU-10/AU-10-05 channel unit!

Unit to add 10 measuring points. Set the unit number using the digital switch and assign a channel number to each measuring point of the unit. The channel unit is connected to the driver unit AU-50MA or the master unit AU-50M.
During measurement, the LED corresponding to the measurement channel lights up and the LED emission colour varies depending on the sensor mode type (LED emission colour　Strain measurement: red, DC voltage measurement: blue, thermocouple temperature measurement: green).
Without connector: AU-10 With connector: AU-10-05

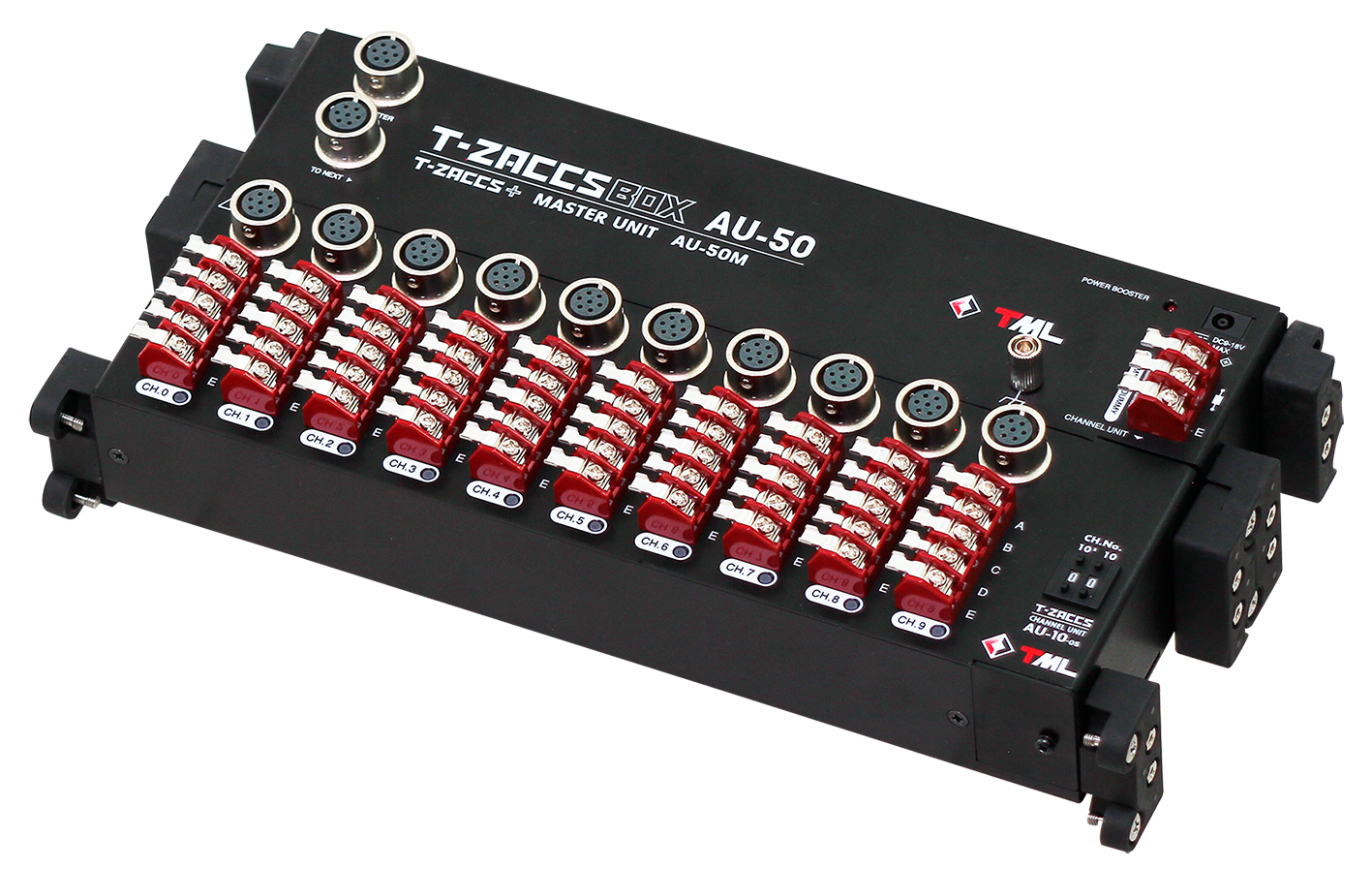

AU-10-05

AU-10

Features
  • Up to 5 additional units can be added against the T-ZACCS+ master unit
  • When used as a switching box, it can be used with conventional data loggers such as TDS-540 and can be mixed with conventional switch boxes ASW-50C/SSW-50D
  • Up to 5 additional units for T-ZACCS+ driver units or master units

  • Specifications
    Type T-ZACCS UNIT
    Channel Unit AU-10/AU-10-05
    Number of measurement points 10 points
    Input terminal Dual-use screw-mounted and soldered type
    One-touch connector NDIS One-touch connector (AU-10-05 only)
    Power supply Supplied by AU-50MA/AU-50M
    Dimensions AU-10：280（W）×45（H）×60（D）mm
    AU-10-05：280（W）×45（H）×80（D）mm
    *Excluding rubber protector and protruding parts
    Weight AU-10: approx. 900 g
    AU-10-05: approx. 1.2 kg

More Information
