T-ZACCS UNIT

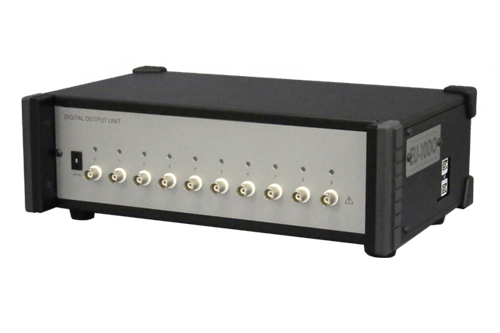

Digital Output Unit T-ZACCS UNIT EU-10DO

This is a digital output unit for T-ZACCS9 TS-963/-960.
Up to 10 TTL/LVTTL level digital signals can be output simultaneously based on trigger and alarm conditions set by the TS-960/TS-963.
As wiring using BNC cables is possible, it is easy to construct a system using trigger control and synchronisation with measuring instruments, test equipment and PLCs that are matched to TS-960/TS-963 measurements.

EU-10DO
Features
  • Up to 10 non-isolated TTL or LVTTL level digital signal outputs possible
  • Easy connection via BNC cable

  • Specifications
    Type EU-10DO
    Function Trigger/alarm signal output or inter-unit synchronisation signal output according to TS-960/963 settings
    Number of output point 10 points
    Output BNC connector
    Output range Non-isolated TTL output
      DC5V (TTL trigger level)
      HI (ON) level output voltage: 2.0 V min.
      LO (OFF) level output voltage: 0.8 V max.
    Non-isolated LVTTL output
      DC 3.3V (LVTTL trigger level)
      HI (ON) level output voltage: 2.0 V min.
    LO (OFF) level output voltage: 0.8 V max.
    Max. output current 3mA MAX
    Unit synchronisation signal output Output signal frequency 10Hz
    Number of connection 1 unit at maximum
    Extension distance 100 m (between instruments)
    Connection cable EX connection cable(CR-89**)
    External dimensions 328（W）×98（H）×183（D）mm
    Weight Approx. 3 kg
    Power supply AC100～240V 50/60Hz 86VA MAX

More Information

Analog Output Unit T-ZACCS UNIT EU-10VOCE

This is an analog output unit for T-ZACCS9 TS-963/-960. Analog data are output corresponding to the input such as strain or voltage. Since this is a separate unit, it can be placed at any position between the data logger and the measurement box.

Analog Output Unit
Features
  • Analog output of up to 20 points is possible using two units for one TS-960
  • Placed at any position between the data logger and the measurement box

  • Specifications
    Type EU-10VO
    Function Voltage output of measured value of arbitrary channel
    Number of output point 10 points
    Output BNC connector
    Output range ±10V, ±5V, 0 ~ +5V
    Calibration output Zero and arbitrary output in the range of output level
    Number of connection 2 units at maximum
    Extension distance 100 m (between instruments)
    Connection cable EX connection cable (CR-89**)
    External dimensions 328 (W) × 98 (H) × 183 (D) mm
    Weight Approx. 3 kg
    Power supply AC 100 ~ 240 V   50/60 Hz  86 VA Max.

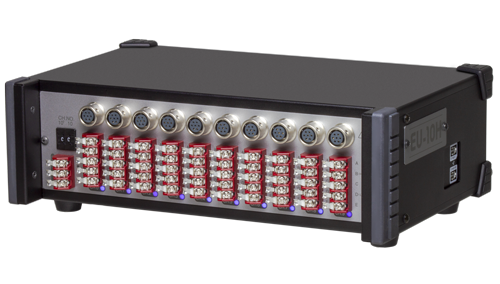

Measurement Unit T-ZACCS UNIT EU-10HCE

This is a measurement box dedicated to T-ZACCS9 TS-963/-960. The number of measuring point is 10, and various inputs such as strain gauges, strain gauge type transducers, thermocouples, Pt-RTDs and dc voltage can be measured. Owing to the introduction of our unique next-generation A/D conversion method that enables high-speed measurement with high accuracy and stability, and also of ultra high-speed field network that is based on Ethernet, highly accurate and stable measurement is enabled eliminating the influence of various thermoelectromotive forces, thermal zero shift of amplifier, and power line noise. Measurement is possible at intervals of 0.1 seconds in high-speed mode and 0.4 seconds in high-accuracy mode (in 50Hz area) regardless of the number of measuring point.

測定ユニット
Features
  • Measures 1000 points in 0.1 seconds at the fastest by the adoption of ultra high-speed field network
  • Highly accurate and stable measurement achieved by the adoption of our unique next-generation A/D conversion method that enables high-speed measurement with high accuracy and stability eliminating the influence of various thermoelectromotive forces, thermal zero shift of amplifier, and power line noise
  • In high-accuracy mode, measures 1000 points in 0.4 seconds (in 50Hz area) even for thermocouple measurement and/or using high-resolution mode
  • A temperature-integrated strain gauge can be measured using one channel
  • Complete compensation method of strain (Comet) provided
  • Various check functions (insulation check, sensitivity check, dispersion check, thermocouple burnout check)

  • Specifications
    Type EU-10H
    Measurement object Strain gauge, Strain gauge type transducer
    DC voltage, Thermocouple, Pt-RTD
    Number of measuring point 10 points
    Measuring speed High-speed mode 0.1 seconds
    High-accuracy mode 0.4 seconds(50Hz) / 0.34 seconds(60Hz)
    Number of connection 100 boxes at maximum (including the TS-960 built-in)
    Extension distance 100 m (between instruments)
    Connection cable EX connection cable (CR-89**)
    External dimensions 320 (W) × 98(H) × 183 (D) mm
    Weight Approx. 3 kg
    Power supply AC 100 ~ 240 V   50/60 Hz  86 VA Max.

Digital Displacement Sensor Measurement Unit T-ZACCS UNIT EU-10D

This is a 10-channel measuring unit exclusively for TS-960/TS-963.
It can measure digital displacement sensors with 10 measurement points.Can be used with T-ZACCS BOX EX-10H, T-ZACCS UNIT EU-10H, and EU-10VO at the same time.

EU-10D
Features
  • Combined with T-ZACCS9 TS-963/-960, digital displacement sensor measurement is available
  • Compatible with two types of digital displacement sensors
  • No signal degradation because it is handled as a digital signal
  • Can be used with T-ZACCS BOX EX-50H, T-ZACCS UNIT EU-10H, and EU-10VO at the same time

  • Specifications
    Type EU-10D
    Number of measuring point 10 points
    Supported digital
    Displacement sensor    		   Sensor A(5V) Sensor B(12V)
    Compatible connector R03-PB6M(Manufactured by Tajimi) R03-PB8M(Manufactured by Tajimi)
    Sensor supply power 4.5-5.5V (100mA) 11.4-12.6V(50mA)
    Pin assignment A : Phase A
    B : Phase B
    C : +5V
    D : NC
    E : GND
    F : GND    		 A : GND
    B : Phase A
    C : +12V
    D : Phase B
    E : NC
    F : Shield
    G : NC
    H : NC
    Input signal Rectangular wave voltage input
    Counting method Up/down counting by phase difference of phase A + phase B
    Measurement range ±640000 integrated counting
    Count reset When the power is turned ON/FULL count
    Number of connected units UP to 100 units (including TS-960/TS-963 built-in unit)
    Extension distance 100 m (between instruments)
    Connection cable EX connection cable (CR-89**)
    External dimensions 328(W)×98(H)×183(D)mm
    Weight Approx. 3 kg
    Power supply AC100 to 240V 50/60Hz 86VA MAX
