High-precision Compression Load Cell

CLM-NB Compression Load Cell 10kN to 500kN

CLM-NBThe CLM-NB Load Cell is an inert-gas encased load cell in a hermetically sealed package. It offers high precision, high output characteristics and excellent consistency because it uses a shear beam for the strain sensing element. This model is widely used in applications like test equipment.

Protection ratings : IP 65 equivalent

CLM-NB Compression Load Cell
Features
  • High precision, High output
  • Optimum for load detection of testing machines

  • Specifications
    Type Capacity Rated output Non-linearity Temperature
    range
    CLM-10KNB 10kN 2.5 mV/V
     (5000×10-6 strain) ±0.2 %    		 0.03 ％RO -30 to +80 ℃
    CLM-20KNB 20kN
    CLM-50KNB 50kN
    CLM-100KNB 100kN
    CLM-200KNB 200kN
    CLM-500KNB 500kN

    Output polarity

    Measurement moves in the minus direction with regard to increased compressing force.

More Information

CLJ-NA Compression Load Cell 5kN to 30kNCE

CLJ-NAThe CLJ-NA Load Cell is designed considering JIS B 7728 "Load calibration devices for verifying material testing machine" and is the most suitable for verification of single axis compression testing machine. Calibration in accordance with JIS B 7728 is available at extra cost.

Protection ratings : IP 65 equivalent

CLJ-NA Compression Load Cell
Features
  • High Precision

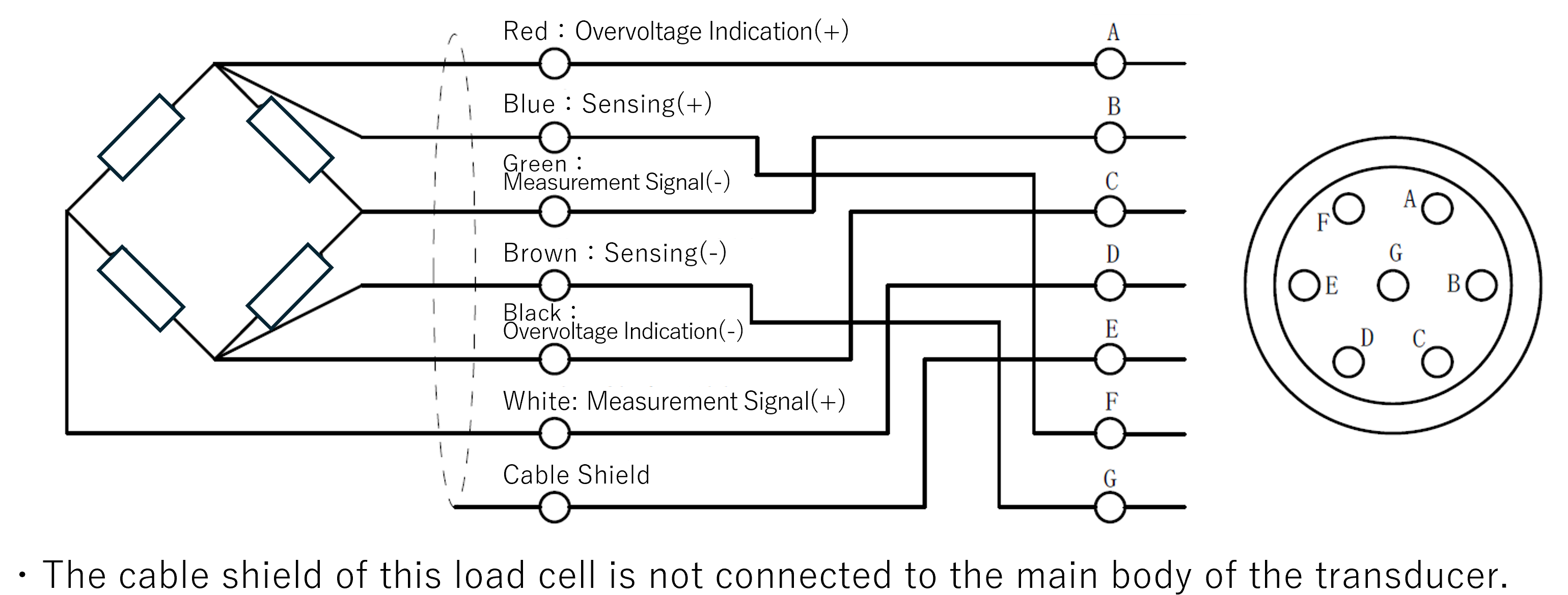

  • Compatible with remote sensing

  • Specifications
    Type Capacity Rated output Non-linearity Temperature
    range
    CLJ-5KNA 5kN 2 mV/V
    (4000×10-6 strain) or more    		 0.05 %RO -30 to +80 ℃
    CLJ-10KNA 10kN
    CLJ-20KNA 20kN
    CLJ-30KNA 30kN

    Output polarity

    Measurement moves in the minus direction with regard to increased compressing force.

More Information

CLJ-NB Compression Load Cell 50kN to 10MN

CLJ-NBThe CLJ-NB Load Cell is designed considering JIS B 7728 "Load calibration devices for verifying material testing machine" and is the most suitable for verification of single axis compression testing machine. Calibration in accordance with JIS B 7728 is available at extra cost.

Protection ratings : IP 67 equivalent

CLJ-NB Compression Load Cell
Features
  • High Precision (0.05 %RO Non-linearity)
  • Compatible with remote sensing

  • Specifications
    Type Capacity Rated output Non-linearity Temperature
    range
    CLJ-50KNB 50kN 2 mV/V
    (4000×10-6 strain) or more    		 0.05 %RO -20 to +70 ℃
    CLJ-100KNB 100kN
    CLJ-200KNB 200kN
    CLJ-300KNB 300kN
    CLJ-500KNB 500kN
    CLJ-1MNB 1MN
    CLJ-2MNB 2MN
    CLJ-3MNB 3MN
    CLJ-5MNB 5MN
    CLJ-10MNB 10MN

    Output polarity

    Measurement moves in the minus direction with regard to increased compressing force.

More Information
