Flat Compression Load Cell

CLL-NA Compression Load Cell 500kN to 1MNCE

CLL-NAThe CLL-NA load cells with a flat loading platform are used to conduct loading tests on cylindrical concrete specimens. A cylindrical concrete specimen can be directly set on the surface of the loading platform. By using this load cell together with the compressometer, it is possible to measure load and strain simultaneously.

Protection ratings : IP 65 equivalent

CLL-NA Compression Load Cell
Features
  • Guide marking for right placement of specimens with different sizes
  • Easy handling

  • Specifications
    Type Applicable
    specimen    		 Capacity Rated output Non-linearity Temperature
    range
    CLL-500KNA Φ10×20 cm 500kN 1.5mV/V
     (3000×10-6 strain) ±0.5 ％    		 0.2 %RO -20 to +70 ℃
    CLL-1MNA Φ15×30 cm 1MN

    Output polarity

    Measurement moves in the minus direction with regard to increased compressing force.

More Information

CLH-NA Compression Load Cell 1MN to 2MNCE

The CLH-NA is designed mainly to test a cylindrical test specimen made of high-strength concrete.The cylindrical specimen can be directly set on the top of load cell. Also, by using the load cell together with a compressometer, it is possible to measure load and strain simultaneously.

Protection ratings : IP 65 equivalent

圧縮フラット型荷重計 CLH-NA
Features
  • Guide marking for right placement of specimens with different sizes.
  • Easy handling

  • Specifications
    Type Applicable
    specimen    		 Capacity Rated output Non-linearity Temperature
    range
    CLH-1MNA Φ10×20 cm 1MN 1.5 mV/V
    (3000×10-6 strain) ±0.5%    		 0.2 %RO -20 to +70 ℃
    CLH-1.5MNA Φ12.5×25 cm 1.5MN
    CLH-2MNA Φ15×30 cm 2MN

    Output polarity

    Measurement moves in the minus direction with regard to increased compressing force.

More Information

Compression Load Cell CLF-NA　500kN to 2MNCE

The CLF-NA Load Cell is a thin load cell with a flat load bearing surface. It is widely used as a load sensor for industrial machinery, especially when measuring loads on rolling machines or measuring compression force on presses.

Protection ratings : IP 65 equivalent

Compression Load Cell CLF-NA 500kN～2MN
Features
  • Can be used in tight spaces in thin
  • Excellent stability
  • Optimum for rolling machine and press machine

  • Specifications
    Type Capacity Rated output Non-linearity Temperature range
    CLF-500KNA 500kN 2mV/V
    (4000×10-6 strain)±0.5%    		 0.3%RO -20 to +70℃
    CLF-1MNA 1MN
    CLF-1.5MNA 1.5MN
    CLF-2MNA 2MN

    Output polarity

    Measurement moves in the minus direction with regard to increased compressing force.

More Information

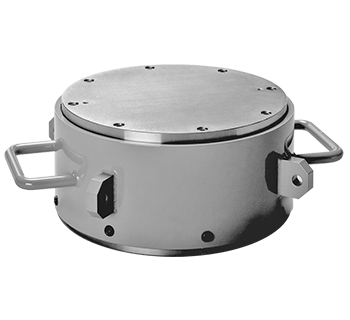

Compression Load Cell CLF-NA 3MN to 10MN

The CLF-NA Load Cell is a thin load cell with a flat load bearing surface. It is widely used as a load sensor for industrial machinery, especially when measuring loads on rolling machines or measuring compression force on presses.

Protection ratings : IP 65 equivalent

Compression Load Cell CLF-NA 3MN to 10MN
Features
  • Can be used in tight spaces in thin
  • Excellent stability
  • Rolling machine, press machine suitable

  • Specifications
    Type Capacity Rated output Non-linearity Temperature range
    CLF-3MNA 3MN 1.5mV/V
    (3000×10-6 strain)±0.5%    		 0.3%RO -20 to +70℃
    CLF-5MNA 5MN
    CLF-10MNA 10MN

    Output polarity

    Measurement moves in the minus direction with regard to increased compressing force.

More Information
