Multi-layer inclinometer
Multi-layer inclinometer KB-JG/KB-KG ±5° to ±10°
This is the inclinometer for automatic measurement of ground and structure displacement.
A dedicated guide pipe is installed in the ground or structure in advance, and multiple inclinometers are connected and fixed in the guide pipe with relay rods (KBF-JG33/KBF-KG33) so that they are at the measurement position.
Automatic measurement can be carried out using the data logger TDS/TS series.
Graphic display of displacement is also possible.
Used for measuring landslide displacement and earth retaining wall displacement.
The KB-JG and KB-KG models are available according to the number of measurement axes. The KB-JG model can only measure in one direction, while the KB-KG model can measure in both X and Y directions simultaneously. Built-in arresters can also be manufactured.
Protection rating: IP68 equivalent
- Features
- Made of all stainless steel for excellent corrosion resistance
- Excellent reliability
- Easy automatic measurement
- Up to 15 steps can be measured
- Model KB-KG can measure in X- and Y-direction with a single unit
-
Specifications
Type No. of measuring axis Capacity Rated output Non-linearity Temperature range KB-5JG 1 direction ±5° Approx. 1mV/V
（2000x10-6 strain）
0.5％RO －20 to ＋60℃ KB-10JG ±10° KB-5KG 2 directions ±5° KB-10KG ±10° Output polarity
The measured value moves in the direction of the arrow on the label on the body of the unit in relation to the change in inclination.
More Information
Multi-layer inclinometer KB-JH/KB-KH ±5° to ±10°
This is the inclinometer based on the KB-JH/KB-KH multi-stage inclinometers. In combination with a guide pipe (KBF-21) with a large hole diameter, up to 31 levels can be measured. Graphic display of displacement is also possible. It is used for landslide displacement measurement and earth retaining wall displacement measurement. The KB-KH model can also measure in the X and Y directions with a single unit. A built-in arrester can also be manufactured.
Protection rating: IP68 equivalent
- Features
- Made of all stainless steel for excellent corrosion resistance
- Excellent reliability
- Easy automatic measurement
- Up to 31 steps can be measured
- Model KB-KH can measure in X- and Y-direction with a single unit
-
Specifications
Type No. of measuring axis Capacity Rated output Non-linearity Temperature range KB-5JH 1 direction ±5° Approx. 1mV/V
（2000×10－6strain）0.5％RO －20 to ＋60℃ KB-10JH ±10° KB-5KH 2 directions ±5° KB-10KH ±10° Output polarity
The measured value moves in the direction of the arrow on the label on the body of the unit in relation to the change in inclination.
More Information

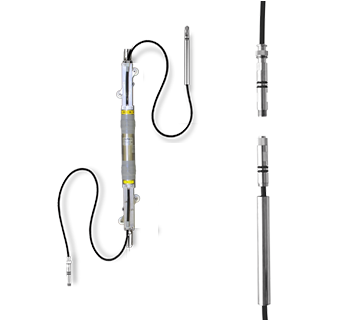

Network Compatible Multi-layer inclinometer IM-10UA/BA ±10°
An inclinometer developed to automatically measure the displacement of the ground and structures. The dedicated guide pipes are installed vertically in the ground or structure in advance, and multiple inclinometers are connected to the guide pipes via relay rods (KBF-33JG) and fixed to the measurement positions. The built-in network module in the inclinometer provides the connection of inclinometers with a single cable in succession. Used for measuring the underground displacement of landslides and the deformation state of earth retaining walls. The IM-10UA can measure only in one direction, and the IM-10BA can measure in both the X- and Y-directions simultaneously with a single unit.
Protection rating: IP68 equivalent
- Features
- Eliminated transportation constraints (horizontal transportation supported)
- Connection using only single cable
- All stainless-steel structure that provides excellent anti-corrosion resistance
- Adoption of new small diameter guide pipe (IM-GP: φ50.5)
- Also compatible with conventional guide pipes (φ56) (optional)
- High resolution, compared to conventional NKB-10 (Cap. 10°: Res. 0.005°→ 0.001°)
- Compact overall length (identical with KB-JG)
- Built-in temperature sensor allows temperature measurement per depth (optional)
- Can be mixed with older model NKBs
-
Specifications
Type No. of measuring axis Capacity Rated indication Non-linearity Temperature range IM-10UA 1 ±10° ±10000 digit 0.5％RO －20 to ＋60℃ IM-10BA 2 ±10° Output polarity
The measured value moves in the direction of the arrow indicated on the label on the body of the unit in response to changes in inclination.

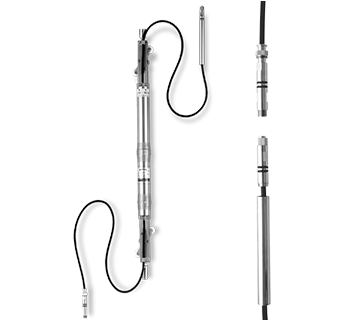

Network Compatible Multi-layer inclinometer NKB-LF/NKB-MF ±5° to ±10°
This is the inclinometer developed to automatically measure the displacement of the ground or structure.

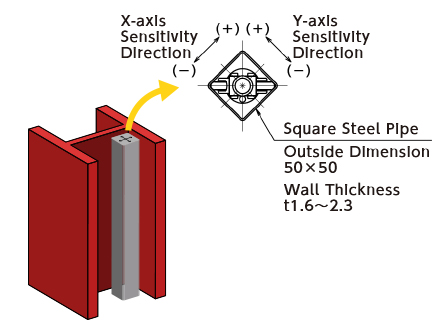

A special guide pipe is installed vertically in the ground or structure in advance, and several inclinometers are connected to the guide pipe with a relay rod (KBF-33) so that they come to the measurement position and are fixed in place.

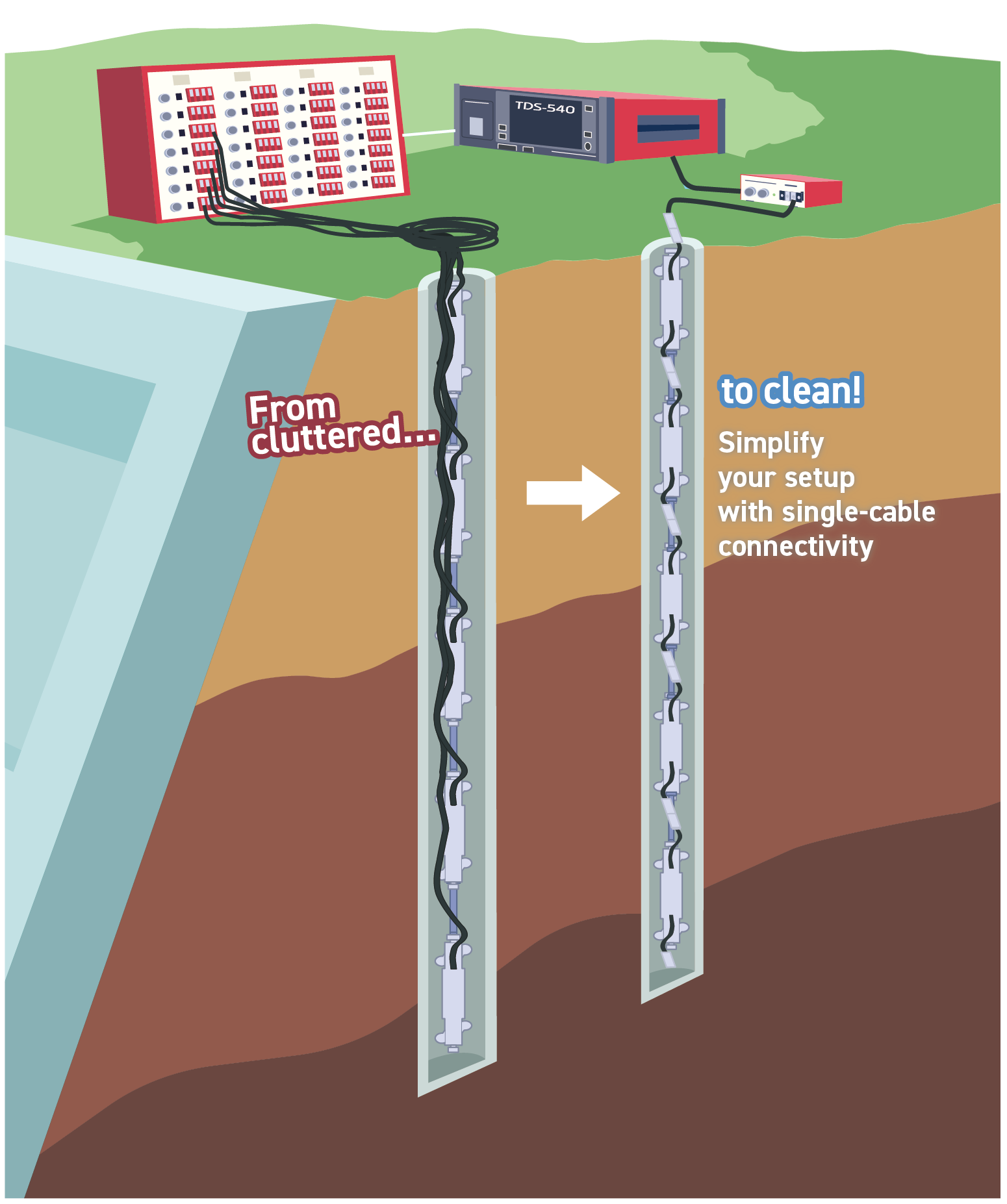

As the inclinometers have a built-in network module, the inclinometers are connected successively with a single cable.
The system is used for measuring landslide displacement and the displacement of earth retaining walls.
The NKB-LF model only measures in one direction, while the NKB-MF can simultaneously measure in X and Y direction with a single unit.
Protection rating: IP68 equivalent
- Features
- Connection possible with a single cable
- Made of corrosion-resistant all stainless steel
- Easy automatic measurement
- No sensitivity loss
- Insulation check function included
-
Specifications
Type No. of measuring axis Capacity Rated indication Non-linearity Temperature range NKB-5LF 1 direction ±5° approx.±2000 digit 0.5％RO －20 to ＋60℃ NKB-10LF ±10° NKB-5MF 2 direction ±5° NKB-10MF ±10° Output polarity
The measured value moves in the direction of the arrow indicated on the label on the body of the unit in response to changes in inclination.
