Concrete Compression Testing Sensor

CM Compressometer
50000 x 10-6 strain to 33000 x 10-6 strain

The CM compressometer is designed to conduct a strength test. It measures the axial strain on a cylindrical concrete specimen placed in and secured by screws to the inner chamber of this compressometer. It uses a high-sensitivity strain gauge to measure the amount of strain. By multiplying a measurement by a certain factor, the amount of strain can be calculated as a numerical value. Unlike the case of ordinary strain gauges, this compressometer is simple and easy to operate and can be used repeatedly. However, it cannot be used to conduct breaking tests.

CM Compressometer
Features
  • Easy to install
  • Repeated use
  • Easy drawing of stress- strain curve
  • Specifications

    Type Applicable specimen Gauge length Capacity
    CM-10 ø10 x 20 cm 100 mm 50000 x 10-6 strain
    CM-12 ø12.5 x 25 cm 125 mm 40000 x 10-6 strain
    CM-15 ø15 x 30 cm 150 mm 33000 x 10-6 strain

CM-H Compressometer (Destructive)
20000 x 10-6 strain

The CM-10H compressometer is designed to conduct a breaking strength test. It measures the compression strain on a cylindrical concrete specimen (10 cm in diameter x 20 cm in length) made of generally used concrete or high-strength concrete. The high-sensitivity strain gauge is assembled into this compressometer to measure the amount of strain. Both the high-sensitivity strain gauge and a cylindrical concrete specimen are provided with coverings to protect them from damage. A cylindrical concrete specimen can be set in the compressometer quickly and easily. This compressometer allows the strain on a wet concrete specimen, taken out right after underwater curing, to be measured. With this compressometer linked with either the CLL-NA or CLH-MNA load meter, it is also possible to measure the modulus of static elasticity.

CM-H Compressometer (Destructive)
Features
  • Usable till destruction of a specimen
  • Easy to install
  • Possible strain measurement of wet specimen
  • Repeated use
  • Specifications

    Type Applicable specimen Gauge length Capacity
    CM-10H ø10 x 20 cm 100 mm 20000 x 10-6 strain

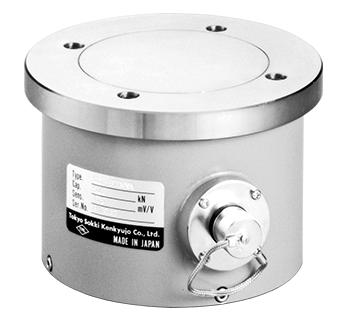

CLL-NA Compression Load Cell 500kN to 1MN

This is a load cell with a flat loading surface. It is used to conduct strength tests on cylindrical concrete specimens. Guide marks on the loading surface allow cylindrical concrete specimens of different sizes to be easily aligned.

Protection ratings : IP 65 equivalent

CLL-NA Compression Load Cell
Features
  • Convenient guide marks
  • Easy handling
  • Specifications

    Type Applied specimen Capacity Rated output Non-linearity Temperature range
    CLL-500KNA ø10 x 20 cm 500 kN

    1.5 mV/V
     (3000 x 10-6 strain) ±0.5 %

    0.2 %RO -20 to +70 ℃
    CLL-750KNA ø12.5 x 25 cm 750 kN
    CLL-1MNA ø15 x 30 cm 1 MN

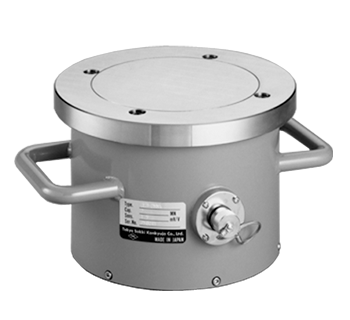

CLH-NA Compression Load Cell  1MN~2MN

This is a load cell with a flat loading surface. It is mainly used to conduct strength tests on high-strength cylindrical concrete specimens. Compared with CLL-NA, a large load can be detected even for a cylindrical concrete specimen of the same size.

Protection ratings : IP 65 equivalent

圧縮フラット型荷重計 CLH-NA
Features
  • Convenient guide marks
  • Easy handling
  • Specifications

    Type Applied specimen Capacit Rated output Non-linearity Temperature range
    CLH-1MNA ø10 × 20 cm 1MN 1.5mV/V
    (3000 × 10-6 strain)±0.5%
    0.2%RO -20 to +70℃
    CLH-1.5MNA ø12.5 × 25 cm 1.5MN
    CLH-2MNA ø15 × 30 cm 2MN
