Wireless Data Recording System
For measurement of moving objects and locations where measurement cable routing is difficult or detracts from the landscape!
The wireless data recording system performs interval measurement and data recording of strain gage transducer measurements wirelessly. By connecting a strain gage transducer to the wireless module ZT-014, measurement data is digitally processed and sent to the wireless controller. There are two types of wireless controllers: the ZT-120, which is controlled by a PC, and the ZT-150, which is controlled by the portable data logger TDS-150.
Wireless Data Recording System Wireless Controller ZT-120
The wireless data recording system consists of the wireless module ZT-014 and the wireless controller ZT-120.
The wireless module incorporates an A/D converter that converts measurement data from strain gage transducers into digital data for interval measurement, data recording, and monitoring. Since wiring from the sensor to the controller can be made wireless, it is ideal for measurement in locations where wiring of measurement cables is difficult or detracts from the landscape, or for measurement of moving objects, reducing wiring labor and costs.
Measurement data is stored in the memory of the wireless module, and the wireless controller and PC are brought in periodically to collect the data.
- Features
- Communication distance is approximately 50m in line-of-sight
- Wireless controller is connected to PC via USB and powered by USB bus power
- Up to 20 wireless modules can be controlled (setting, data collection, monitoring)
-
Specifications
Type Wireless Controller ZT-120 Number of wireless
module connectionsUp to 20 units
(regardless of simultaneity between each channel)Communication system 2.4GHz band IEEE802.15.4 protocol compliant (number of channels: 15) External interface USB 2.0 compliant (cable length: approx. 1.7 m) Power supply voltage DC4.7V to 5.3V (supplied via USB) External dimensions 30(W)× 25(H)× 65(D)mm(excluding projected parts) Weight approx. 130g (including antenna)

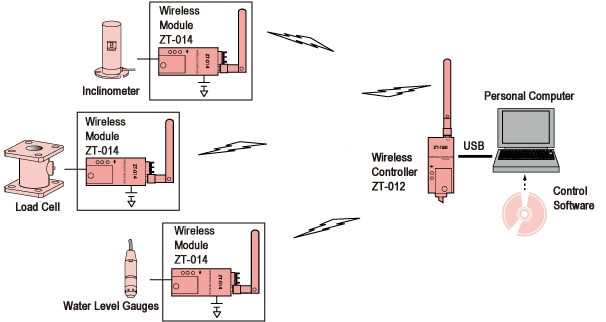

System block diagram
Application examples
Dynamic observation of retaining wall inclination (inclinometer), anchor tension (center-hole load cell), and observation wells (water level gauge); data can be collected wirelessly by visiting the site periodically
Suspended load management of cranes
On-line measurement of moving objects with difficult cabling, etc.
TDS-150 Wireless system support
Wireless Controller ZT-150 / Wireless Module ZT-014
The wireless controller ZT-150 connects to the portable data logger TDS-150 and performs wireless communication with the wireless module ZT-014. The wireless controller wirelessly connects up to 20 wireless modules for setting, data recording, and monitoring. Wiring from sensor to data logger can be made wireless, reducing wiring labor and cost.
- Features
- Communication distance is about 50m in line of sight
- Wireless controller ZT-150 is connected to TDS-150 via RS-232C
- Can be used in combination with channel units and network modules (up to 20 points)
-
Specification
Type Wireless Controller ZT-150 Number of wireless
module connectionsUp to 20 units
(regardless of simultaneity between each channel)Communication system 2.4GHz band IEEE802.15.4 protocol compliant
(number of channels: 15)External interface RS-232C compliant
(cable length: approx. 1.5 m)Power supply voltage 4.7V to 5.3V DC (supplied by TDS-150) External dimensions 30(W)× 22(H)× 65(D)mm(excluding projected parts) Weight approx. 150g (including antenna)
System block diagram
More Information
Wireless module ZT-014
The wireless module incorporates an A/D converter that converts measurement data from strain gage transducers into digital data for interval measurement, data recording, and monitoring. Since the wiring from the sensor to the controller can be made wireless, the module is ideal for measurement in locations where wiring of measurement cables is difficult or detracts from the landscape, or for measurement of moving objects, reducing wiring labor and costs.
Data recording specifications differ depending on the controller ZT-120 or ZT-150 to be combined; with the ZT-120, data is recorded in the module's data memory and can be retrieved at any timing; with the ZT-150 for TDS-150 only, data is not stored in the module's data memory and can be retrieved at any time. In combination with the ZT-120, data is stored in the data logger TDS-150's memory, not in the module's data memory.
- Features
- Easy wiring due to wireless technology
- Digital processing in the vicinity of the strain gage makes it resistant to noise
- Ultra-low consumption enables measurement for more than one year
- Communication distance is about 50 m in line-of-sight
- Wireless module is compact and lightweight
-
Specification
Type Wireless Controller ZT-014 Number of measurement points 1 Applicable gauge resistance 4 gauges 350 to 1000Ω Bridge power supply DC2V Measuring range ±30,000 x 10-6 strain
Measurement mode Direct Functions Interval measurement, sleep function, measurement channel setting,
radio channel setting, open check, battery level check,
wireless communication status checkInterval timer 1 minute minimum, 24 hours 00 minutes maximum (1 minute steps) Data memory 3500 data (recorded in nonvolatile memory)
*When used with wireless controller ZT-120Communication system 2.4GHz band IEEE802.15.4 protocol compliant (Number of channels: 15) Power supply voltage DC2.3V to 3.5V Battery life Approx. 1 year
(CR-123A battery x 1 [external battery], +23°C ±5°C, 350Ω bridge, 1-hour interval)
*Values are approximate. Values are approximate and may vary depending on measurement conditions, temperature, etc.Operating environment -10 to +60℃ less than 85%RH (without condensation) External dimensions 30(W)×25(H)× 65(D)mm(excluding projected parts) Weight approx. 60g (including antenna)
